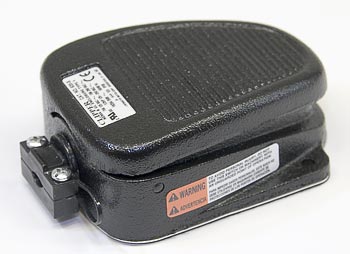

Foot switch for Raymond 111-Series electric lift truck
RA 1-150-334
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Raymond RA 1-150-334 is a momentary-action foot switch engineered for integration with electric lift truck SCR control circuits. Designed and manufactured by Raymond for use on electric pallet trucks, it features a non-latching pedal actuator, 24VDC nominal system compatibility, and industrial-grade construction suitable for continuous service.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 111-Series |
| Part Number | RA 1-150-334 |
| Manufacturer Part Number | RA1-150-334 |
| Alternate Part Numbers | 1-150-334 |
Electrical Specifications
| Rated Voltage | 24VDC nominal system voltage |
| Rated Current | 5A maximum at 24VDC |
Additional Specifications
| Housing Material | Polycarbonate actuator with reinforced nylon housing |
| Expected Actuation Life | Exceeds 100,000 cycles |
| Description | Raymond RA 1-150-334 is a momentary-action foot switch engineered for integration with electric lift truck SCR control circuits. Designed and manufactured by Raymond for use on electric pallet trucks, it features a non-latching pedal actuator, 24VDC nominal system compatibility, and industrial-grade construction suitable for continuous service. |
Frequently Asked Questions
Q: What makes and models is the RA 1-150-334 compatible with?
A: The RA 1-150-334 is compatible with Raymond 111-Series electric lift trucks. It is designed for use in industrial applications requiring reliable foot control.
Q: What materials are used in the RA 1-150-334 construction?
A: The RA 1-150-334 is constructed with polycarbonate and reinforced nylon materials. These provide durability and impact resistance for long-term use in demanding environments.
Q: How long can the RA 1-150-334 last under normal operating conditions?
A: The RA 1-150-334 is engineered for extended service life, with a mechanical life expectancy exceeding 100,000 actuation cycles.
Q: What type of switch mechanism does the RA 1-150-334 use?
A: The RA 1-150-334 features a momentary-action non-latching pedal actuator. It returns to its neutral position when the pedal is released, making it ideal for dynamic control applications.
Q: Are there any alternate part numbers for the RA 1-150-334?
A: The RA 1-150-334 is also referenced as ra1-150-334 or 1-150-334 depending on documentation format. These are the same replacement part with no superseding replacements available.
