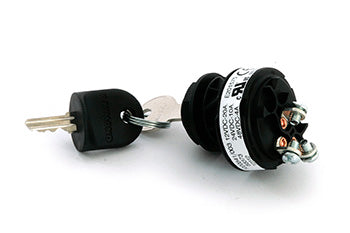

Key Switch for Raymond Electric Lift Trucks
RA 1-150-402
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Raymond RA 1-150-402 is a 2-position keyed ignition switch designed for electric lift trucks, supporting 24VDC operation with cross-compatibility to OEM numbers 1020341/002 and 1020341-002. Features robust electroplated steel construction and screw terminal connections for industrial service.
Specifications
Material & Construction
| Key Construction | Nickel-plated brass, matched to lock cylinder |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 261, 4100, 4200, EZ-C, DZ-C, 8610 |
| Part Number | RA 1-150-402 |
| Manufacturer Part Number | 1-150-402 |
| Cross-Reference Part Numbers | Replaces 1020341/002, supersedes 1020341-002 |
| Equivalent Part Numbers | 1020341/002, 1020341-002 |
| Cross Reference Part Numbers | Replaces 1020341/002, supersedes 1020341-002 |
Electrical Specifications
| Voltage Rating | Rated 24VDC operation |
Performance Specifications
| Contact Rating | 15A at 24VDC |
Additional Specifications
| Number of Terminals | 2 electrical terminals |
| Switch Housing Material | Electroplated steel case with non-magnetic barrel |
| Description | Raymond RA 1-150-402 is a 2-position keyed ignition switch designed for electric lift trucks, supporting 24VDC operation with cross-compatibility to OEM numbers 1020341/002 and 1020341-002. Features robust electroplated steel construction and screw terminal connections for industrial service. |
Frequently Asked Questions
Q: What trucks is the RA 1-150-402 ignition switch compatible with?
A: The RA 1-150-402 ignition switch is compatible with Raymond electric lift trucks including models 261, 4100, 4200, EZ-C, DZ-C, and 8610. Verify your truck model before ordering.
Q: What are the cross-reference and equivalent part numbers for the RA 1-150-402?
A: The RA 1-150-402 replaces and supersedes part numbers 1020341/002 and 1020341-002. This switch is electrically and mechanically equivalent to those original parts, making it a direct replacement option.
Q: What material is the RA 1-150-402 ignition switch made from?
A: The RA 1-150-402 ignition switch is constructed from electroplated steel, providing corrosion resistance and durability in industrial environments. The screw terminal connections are designed for reliable long-term service.
Q: How do I know when to replace the RA 1-150-402 ignition switch?
A: Replace the RA 1-150-402 ignition switch if it becomes difficult to turn, does not make solid contact, or shows signs of wear. Regular inspection for electrical resistance changes is recommended to ensure optimal performance.
Q: Can the RA 1-150-402 ignition switch be used as a replacement for part number 1020341/002?
A: Yes. The RA 1-150-402 ignition switch is a direct replacement for part numbers 1020341/002 and 1020341-002. It has the same electrical specifications, mounting configuration, and terminal arrangement.
