Brush Holder Assembly for Raymond 7400, 7420, 7440 Electric Lift Trucks
RA 1008685-514
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

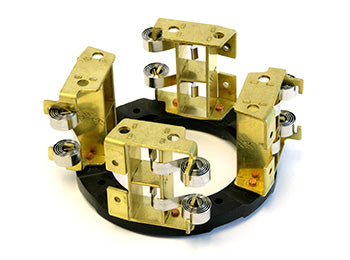

Raymond OEM DC lift motor brush holder assembly for 7400 series electric lift trucks; factory part number RA 1008685-514. Direct bolt-on assembly for 24VDC motors, includes spring-loaded copper carbon brush holders, compatible with standard OEM endbell dimensions. No alternate cross-reference part numbers available.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 7400, 7420, 7440 |
| Part Number | 1008685-514 |
| Manufacturer Part Number | RA 1008685-514 |
Electrical Specifications
| Current Carrying Capacity | Designed for up to 200A peak per lift truck OEM requirements |
Additional Specifications
| Hardware Material | Fasteners meet SAE J429 Grade 5 specification |
| Related Kit Number | 1008685-518 (DC lift motor lead kit assembly, listed adjacent in parts catalog) |
| Compatible Truck Models | Raymond 7400 series, confirmed in parts diagrams |
Frequently Asked Questions
Q: What is the RA 1008685-514 brush holder assembly?
A: The RA 1008685-514 is a replacement dc lift motor brush holder assembly for Raymond 7400 series electric lift trucks. It is a complete assembly containing spring-loaded copper carbon brush holders that maintain continuous electrical contact with the motor commutator.
Q: Which Raymond truck models does the RA 1008685-514 fit?
A: The RA 1008685-514 is designed for direct fit on Raymond 7400, 7420, and 7440 series electric lift trucks. Verify your truck model and motor configuration in the parts diagrams before ordering to confirm compatibility.
Q: What voltage specification is the RA 1008685-514 rated for?
A: The RA 1008685-514 is designed for use with 24vdc motors. It should not be used on 12vdc or higher voltage lift motor configurations.
Q: Is there a related lead kit assembly for the RA 1008685-514?
A: Yes. The ra 1008685-518 is a dc lift motor lead kit assembly that may be required or recommended for full motor assembly completion depending on your service scope.
Q: Does the RA 1008685-514 fit standard endbell dimensions?
A: Yes. The RA 1008685-514 is compatible with standard endbell dimensions. However, verify endbell specifications on your specific motor to confirm direct fit before ordering, as variations between equipment generations may exist.
