Raymond drive belt for height encoder systems
RA 1017244-001
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

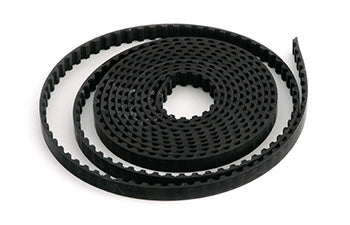

Raymond RA 1017244-001 is an OEM drive belt for height encoder systems on Raymond electric lift trucks, specifically for mast heights between 87 and 95 inches, used on Model 7400. The belt enables accurate lift height positioning by transmitting motion from the lift mechanism to the height encoder sensor. It is constructed from reinforced synthetic compounds and is designed for use within the specified mast height range. Cross-reference part numbers include 1017244/001 and RA1017244/001.
Specifications
Material & Construction
| Material | Reinforced synthetic compounds |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 7200, 7300, 7310, 7400, 7420, 7440, 7500, 7520, 7700, 7720 |
| Part Number | RA 1017244-001 |
| Manufacturer Part Number | RA1017244/001 |
| Cross-Reference Part Numbers | 1017244/001, RA1017244/001 |
Wheel Dimensions
| Mast Height Range | 87 to 95 inches |
Frequently Asked Questions
Q: What is the RA 1017244-001 used for?
A: The RA 1017244-001 is a replacement drive belt for height encoder systems on Raymond electric lift trucks. It transmits motion from the lift mechanism to the height encoder sensor, enabling accurate lift height positioning.
Q: Which Raymond models is this belt compatible with?
A: The RA 1017244-001 is compatible with Raymond models 7200, 7300, 7310, 7400, 7420, 7440, 7500, 7520, 7700, and 7720.
Q: What material is the RA 1017244-001 made from?
A: The RA 1017244-001 is constructed from reinforced synthetic compounds. This material provides durability in material handling environments while maintaining consistent belt tension and encoder signal accuracy.
Q: What are the cross-reference part numbers?
A: The RA 1017244-001 cross-references include 1017244/001 and ra1017244/001. These are equivalent designations for the same replacement part.
Q: What should I do if this belt fails or wears out?
A: If the RA 1017244-001 fails or wears out, it can result in inaccurate lift height readings, loss of height control feedback, or complete height positioning failure. Replace the belt immediately if encoder function is lost.
