Product Description

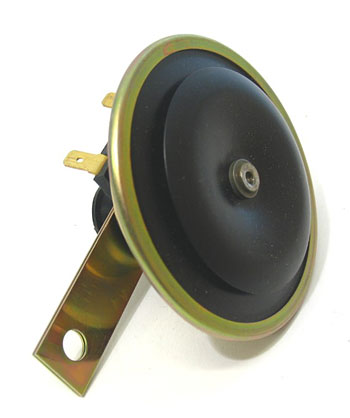

Raymond RA 209224 electric lift truck horn operates at 24VDC and delivers a 110 dB signal for audible warning applications. Engineered for use on Raymond electric lift trucks, this 3-terminal horn features robust construction and an industrial corrosion-resistant finish. Intermittent duty cycle and universal mounting compatibility make it suitable for a wide range of Raymond electric material handling equipment.
Specifications
Electrical
| Operating Voltage | 24VDC |
| Sound Level | 110 dB |
| Terminal Configuration | 3-terminal connection |
| Voltage Range | Operating range: 22–28VDC |
Material & Construction
| Construction | Heavy-duty industrial housing |
Part Numbers
| OEM Part Number | RA 209224 |
| Manufacturer Part Number | 209224 |
Frequently Asked Questions
Q: What is the RA 209224 horn and what is it used for?
A: The RA 209224 is an electric horn for Raymond electric lift trucks. It delivers an audible 110 dB warning signal at 24VDC, providing required operator warning and pedestrian alerts in warehouse and material handling environments.
Q: What are the electrical specifications for the RA 209224?
A: The RA 209224 operates at 24VDC nominal with an acceptable voltage range of 22 to 28VDC. It features a 3-terminal connection configuration and is rated for intermittent duty cycle operation. The horn produces a sound level of 110 dB for effective audible warning.
Q: What is the construction and material of the RA 209224 horn?
A: The RA 209224 features heavy-duty industrial housing with corrosion-resistant finish engineered for material handling environments. The robust construction is designed to withstand vibration and environmental exposure typical of Raymond electric lift truck operations.
Q: Is the RA 209224 horn compatible with different Raymond lift truck models?
A: The RA 209224 provides universal mounting compatibility across a wide range of Raymond electric material handling equipment. However, verify that your truck operates at 24VDC nominal and has available 3-terminal horn connections before ordering.
Q: Can the RA 209224 be used on equipment other than Raymond lift trucks?
A: The RA 209224 is engineered for Raymond equipment with 24VDC electrical systems. Do not use on equipment with different voltage systems or connector types. Confirm your equipment model, voltage rating, and terminal configuration match the RA 209224 specifications.
Q: What maintenance does the RA 209224 horn require?
A: The RA 209224 requires minimal maintenance. Keep connections clean and dry to prevent corrosion. Check that the horn activates reliably when the control signal is applied. Replace the horn if the sound output diminishes significantly or if the horn does not activate.
