Product Description

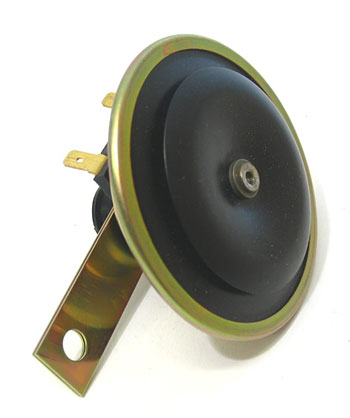

Raymond RA 23309-01 is a 24VDC electric lift truck horn rated at 110 dB, specified for use on Raymond brand equipment and cross-compatible with equivalent part numbers PR23309-01, PM 23309-01, and others.
Specifications
Electrical
| Operating Voltage | 24 VDC nominal |
| Sound Pressure Level | 110 dB at 1 meter |
Part Numbers
| OEM Part Number | RA 23309-01 |
| Cross-Reference Part Numbers | PR23309-01, PM 23309-01, PR2330901, PM2330901, 2330901 |
| Replaces | PR23309-01, PM 23309-01 |
| Equivalent Part Number | 2330901 |
Frequently Asked Questions
Q: What are the electrical specifications for the RA 23309-01 horn?
A: The RA 23309-01 is a 24VDC nominal electric lift truck horn rated at 110 dB sound pressure level measured at 1 meter. It is engineered for use on Raymond brand electric lift trucks and material handling equipment.
Q: What are the cross-reference part numbers for the RA 23309-01?
A: The RA 23309-01 horn is equivalent to PR23309-01, PM 23309-01, PR2330901, PM2330901, and 2330901. These numbers reference the same component across different procurement or regional designation systems.
Q: What equipment is this horn compatible with?
A: This horn is specified for Raymond brand electric lift trucks and compatible with Raymond models requiring OEM part number RA 23309-01 or its equivalents. Verify your equipment documentation before ordering.
Q: Does the RA 23309-01 replace older horn models?
A: Yes, the RA 23309-01 replaces earlier horn models PR23309-01 and PM 23309-01. If you are upgrading legacy equipment, confirm that your electrical system supplies 24VDC before ordering.
Q: What is the expected lifespan of this horn?
A: Electric horns typically provide 5-10 years of service in normal material handling environments. Lifespan depends on frequency of use and exposure to moisture or extreme temperatures. Horn failure is indicated by reduced volume, intermittent operation, or complete silence.
