Raymond

RA 313799-001

$92.73 off

RA 313799-001

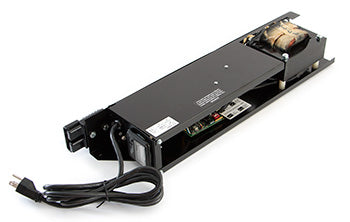

Raymond 24VDC Battery Charger for Electric Pallet Jacks

$602.76
$602.76 $695.49
In stock
⚠️ Compatibility Recommended Before Purchase
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.

Before ordering, confirm:
  • Truck make and model
  • Serial number
  • Battery voltage
  • Battery type (lead-acid vs lithium)
  • Connector style

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Battery Chargers Charger Electric Lift Truck Parts Raymond

Compatibility

Make Raymond, Toyota
Model 102T-F45L, 7HBW23, 8HBW23

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

Raymond RA 313799-001 battery charger provides 24VDC output for electric pallet jack lead-acid batteries. Designed for OEM replacement in Raymond electric lift truck models, this charger operates on 120VAC input and features a powder-coated steel enclosure with convection cooling. No known equivalent or supersession part numbers.

Specifications

Electrical
Input Voltage120VAC nominal
Output Voltage24VDC continuous
ApplicationCharging 24V lead-acid traction battery for electric pallet truck
Operating Frequency60 Hz
Material & Construction
Enclosure FinishPowder coated steel
Part Numbers
OEM Part NumberRA 313799-001
Manufacturer Part NumberRA 313799-001

Frequently Asked Questions

Q: What is the RA 313799-001 battery charger and what does it charge?
A: The RA 313799-001 is an OEM Raymond battery charger that outputs 24VDC continuous power. It is designed to charge 24-volt lead-acid traction batteries used in Raymond electric pallet jacks and lift trucks.

Q: What are the input and output specifications for the RA 313799-001?
A: Input voltage is 120VAC nominal at 60 Hz. Output voltage is 24VDC continuous. The charger operates from standard single-phase facility power and is designed for OEM replacement in Raymond electric lift truck models.

Q: What is the physical construction of the RA 313799-001 charger?
A: The RA 313799-001 features a powder-coated steel enclosure with convection cooling. The steel construction provides durability in warehouse and industrial environments. Convection cooling allows operation without fans or external ventilation.

Q: Is the RA 313799-001 suitable for all Raymond electric pallet jacks?
A: The RA 313799-001 is designed for 24-volt lead-acid battery systems in Raymond electric lift truck models. Do not use this charger on equipment with different battery voltages or chemistries. Confirm your battery voltage matches 24VDC before connecting this charger.

Q: Are there equivalent or replacement part numbers for the RA 313799-001?
A: No known equivalent or supersession part numbers are available for the RA 313799-001. This is the OEM Raymond part number. Use RA 313799-001 when ordering from us.

Q: What maintenance does the RA 313799-001 charger require?
A: Inspect the charger enclosure for dust accumulation on cooling surfaces and clean as needed for optimal heat dissipation. Check power cord and connection terminals for damage or corrosion. Store in a dry environment and protect from moisture to extend service life.
