Product Description

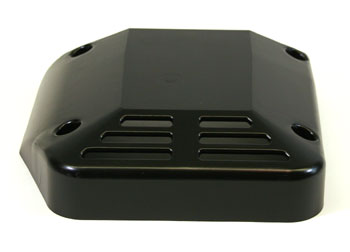

Raymond RA 360-068 gearbox motor cover engineered for electric lift truck brake assembly protection. OEM fit for Raymond 7400, 7420, 7440, and 4100 series lift trucks. Direct-mount, industrial grade with corrosion-resistant finish. All key mounting and dimensional specs included.
Specifications
Mechanical Specifications
| Location Reference | Assembly position: Item 36 through 40, gearbox motor subassembly |
Part Numbers & Compatibility
| OEM Part Number | RA 360-068 |
| Compatible Models | Raymond electric lift truck, models 7400, 7420, 7440, 4100 series |
Performance Specifications
| Service Factor | 1.15 (static load applications) |
Frequently Asked Questions
Q: What equipment models does the RA 360-068 fit?
A: The RA 360-068 is compatible with Raymond electric lift trucks models 7400, 7420, 7440, and 4100 Series. Verify your exact model and serial range to confirm fitment before ordering.
Q: What is the purpose of the RA 360-068?
A: The RA 360-068 is a gearbox motor cover engineered to protect the brake assembly and gearbox motor subassembly from environmental contamination and mechanical damage. It is part of the industrial-grade motor protection system on Raymond electric lift trucks.
Q: Where does the RA 360-068 mount on the lift truck?
A: The RA 360-068 mounts to the gearbox motor subassembly located at assembly positions 36 through 40. It provides direct-mount protection for the brake assembly and motor housing. This is a field-replaceable component on 7400, 7420, 7440, and 4100 Series lift trucks.
Q: What is the service factor for the RA 360-068?
A: The RA 360-068 is rated with a service factor of 1.15 for static load applications. This rating indicates the part is engineered to handle intermittent and sustained lifting loads typical of industrial material handling equipment with a 15 percent safety margin.
Q: What finish does the RA 360-068 have?
A: The RA 360-068 features a corrosion-resistant industrial grade finish. This finish provides protection against rust, moisture, and typical warehouse chemicals. In harsh environments or outdoor storage, inspect periodically for finish degradation.
Q: Can I use aftermarket gearbox motor covers instead of OEM parts?
A: Yes. Aftermarket motor covers designed for Raymond 7400, 7420, 7440, and 4100 Series equipment are available. Ensure mounting points and dimensional specifications match the original equipment. Verify corrosion resistance and material grade meet your operating environment requirements.
