Raymond Motor Brush Set - Replacement
RA 570-236-514
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

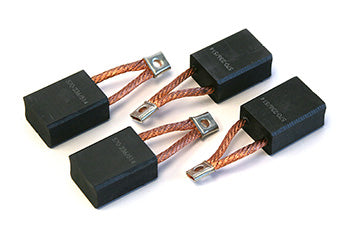

Raymond RA 570-236-514 motor brush set (pack of 4) is an OEM replacement part for electric drive motors in select Raymond lift truck models. Constructed from electrographite carbon compound for optimal conductivity, the set ensures correct fit and electrical contact for manufacturer drive motor assemblies. No cross-reference numbers have been formally published.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | RWR3, RWS3, RWS4, PDPM-186, 537, 63, 64, 65, 111, 112, 113, 114, SA, SB, RWR300, RWS300, RWS400, 630 |
| Holder Material Compatibility | Designed for Raymond OEM brush holder assembly |
| Part Number | RA 570-236-514 |
| Manufacturer Part Number | 570-236-514 |
Additional Specifications
| Brush Material | Electrographite carbon compound |
| Description | Raymond RA 570-236-514 motor brush set (pack of 4) is an OEM replacement part for electric drive motors in select Raymond lift truck models. Constructed from electrographite carbon compound for optimal conductivity, the set ensures correct fit and electrical contact for manufacturer drive motor assemblies. No cross-reference numbers have been formally published. |
| Pack Size | 4 |
Frequently Asked Questions
Q: Which Raymond lift truck models is the RA 570-236-514 compatible with?
A: The RA 570-236-514 is compatible with a range of Raymond electric lift truck models including RWR3, RWS3, RWS4, PDPM-186, 537, 63, 64, 65, 111, 112, 113, 114, SA, SB, RWR300, RWS300, and RWS400.
Q: What material are these motor brushes made from?
A: These brushes are constructed from electrographite carbon compound, which provides optimal electrical conductivity and durability for electric motor applications in lift trucks.
Q: How do I know if the RA 570-236-514 is the right replacement for my lift truck?
A: Verify your specific equipment model to confirm compatibility. The RA 570-236-514 is designed for use in Raymond electric drive motor assemblies.
Q: Are there cross-reference part numbers for this brush set?
A: No cross-reference numbers have been formally published for the RA 570-236-514. The Raymond manufacturer part number is 570-236-514.
Q: What should I consider when replacing motor brushes?
A: Ensure the replacement brushes are designed for your specific lift truck model. Proper installation and fit ensure correct electrical contact and performance.
