Raymond brush box assembly - electric lift truck mo
RA 570-277-517
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

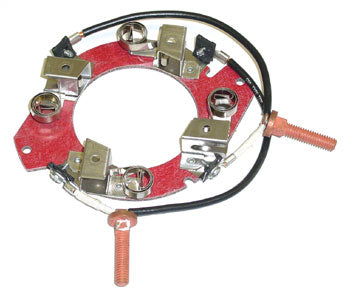

Raymond OEM Brush Box Assembly RA 570-277-517. Genuine replacement component for electric lift truck traction or pump motors. Reinforced thermoset structure supports and locates four carbon brushes, integrating OEM brush holders and constant-pressure spring system for stable current delivery. Designed for direct-fit in select Raymond electric lift truck motors.
Specifications
Material & Construction
| Construction | Industrial-grade thermoset molded body with integrated spring supports |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 111 |
| Part Number | RA 570-277-517 |
Additional Specifications
| Insulation Specification | Thermoset material per OEM electrical insulation requirements |
| Description | Raymond OEM Brush Box Assembly RA 570-277-517. Genuine replacement component for electric lift truck traction or pump motors. Reinforced thermoset structure supports and locates four carbon brushes, integrating OEM brush holders and constant-pressure spring system for stable current delivery. Designed for direct-fit in select Raymond electric lift truck motors. |
Frequently Asked Questions
Q: What models is the RA 570-277-517 compatible with?
A: The RA 570-277-517 is compatible with Raymond electric lift truck models 111.
Q: What material is the RA 570-277-517 constructed from?
A: The RA 570-277-517 features an industrial-grade thermoset molded body engineered to meet electrical insulation requirements. The thermoset construction provides structural reinforcement for brush holders and maintains constant pressure on brushes for reliable electrical contact.
Q: How do I know if the RA 570-277-517 is the right replacement part for my equipment?
A: Check your equipment nameplate to confirm compatibility. The RA 570-277-517 is designed as a direct-fit replacement for select Raymond electric lift truck traction and pump motors.
Q: What is the function of the constant-pressure spring system in the RA 570-277-517?
A: The integrated constant-pressure spring system maintains consistent brush-to-commutator contact throughout brush wear cycles. This ensures stable current delivery and prevents electrical arcing, dropout, or performance loss as brushes gradually wear down during operation.
Q: What are the benefits of using a brush box assembly instead of replacement brushes?
A: The RA 570-277-517 is a complete assembly that includes the molded box body, brush holders, and spring supports. This ensures structural integrity and consistent performance. Replacement brushes alone may not address housing damage or alignment issues.
