Brush box assy for Raymond electric lift truck
RA 570-449-514
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

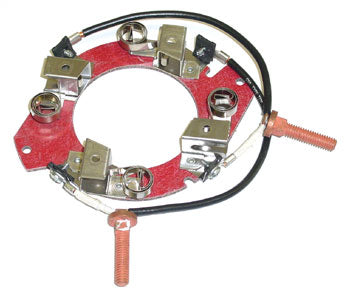

Raymond OEM brush box assy, plate assembly, or brush holder, part number RA 570-449-514, is a drive motor component for Raymond electric lift truck models. Designed as a replacement or recommended spare, this formed steel assembly houses and secures brush sets within the drive motor.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 112, 9600, 9700 |
| Part Number | 570-449/514 |
| Manufacturer Part Number | RA 570-449-514 |
| Application | Replacement or recommended spare for Raymond electric lift truck models |
Additional Specifications
| Product Type | Drive Motor Component |
Frequently Asked Questions
Q: What is the RA 570-449-514 brush box assembly used for?
A: The RA 570-449-514 is a formed steel housing and mounting plate for brush sets inside the drive motor of Raymond electric lift trucks. It secures and positions brush contacts within the dc motor assembly.
Q: Which Raymond lift truck models use the RA 570-449-514 brush box?
A: The RA 570-449-514 is designed for Raymond electric lift truck drive motors. Verify your specific model and serial range against the part number 570-449/514 before ordering to confirm fitment.
Q: What material is the RA 570-449-514 made from?
A: The RA 570-449-514 is a formed steel assembly. Formed steel construction provides strength and dimensional stability for holding brush sets under motor operating loads.
Q: Can the RA 570-449-514 be used as a preventive maintenance spare?
A: Yes, the RA 570-449-514 is recommended as a spare part for Raymond electric lift truck operations. It is advisable to stock this assembly if your fleet includes the compatible models, as drive motor failure can halt operations.
Q: What happens if the brush box assembly becomes cracked or loose?
A: A damaged or loose brush box can cause brushes to misalign, leading to arcing, uneven brush wear, motor overheating, and reduced lift performance. Replace the assembly if deformation, cracks, or movement are detected.
