Liftsplus.com

RA 570-823

  • RA 570-823

RA 570-823

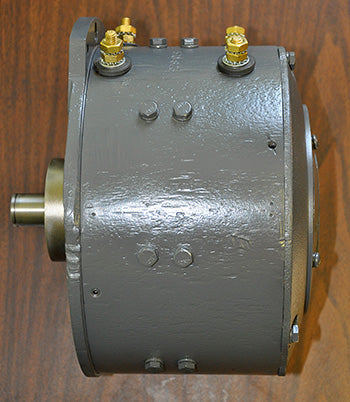

Drive Motor RA570-823

$99,999.00
$99,999.00
⚠️ Compatibility Recommended Before Purchase
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.

Before ordering, confirm:
  • Equipment make and model
  • Serial number (if applicable)
  • Operating voltage
  • Rotation direction (CW / CCW)
  • Shaft diameter and length
  • Mounting pattern and flange type

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Call for Price Motor Raymond

Compatibility

Make Raymond
Model -

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

Drive Motor RA570-823

Frequently Asked Questions

Q: What is RA 570-823 and what function does it perform?
A: RA 570-823 is a drive motor assembly for electric lift trucks. It converts electrical energy from the battery into mechanical motion to power the lift, lower, and drive functions. The motor is rated for specific voltage and horsepower output.

Q: What voltage and specifications does RA 570-823 require?
A: RA 570-823 operates at specific voltage (typically 12V, 24V, 36V, 48V, or 80V depending on the lift truck model). Verify the correct voltage rating and horsepower for your equipment. Using incorrect voltage damages the motor and drains the battery rapidly.

Q: Which electric lift truck models use RA 570-823?
A: RA 570-823 is compatible with electric lift trucks from Crown, Toyota, Raymond, Yale, Hyster, and Jungheinrich. Confirm your truck model and motor type before ordering to ensure correct fitment and electrical compatibility.

Q: What causes RA 570-823 motor failure?
A: Motor failure results from water damage, corroded terminals, depleted or worn-out brushes, winding shorts, bearing seizure, or prolonged overload conditions. Inspect motor terminals for corrosion and verify battery voltage is correct. Replace motor immediately if it does not respond to electrical input.

Q: Can RA 570-823 be repaired or rebuilt?
A: Motor repair capability depends on the specific failure mode. Worn brushes or damaged terminals may be serviceable, but internal winding shorts or bearing failure typically require replacement. Contact us to diagnose motor condition and determine rebuild versus replacement.

Q: What is the typical lifespan of RA 570-823 under normal use?
A: Under normal operating conditions with proper battery maintenance and electrical connections, RA 570-823 typically lasts 3000 to 5000 operating hours. Lifespan is reduced by water ingress, corrosion, or continuous overload conditions.
