Product Description

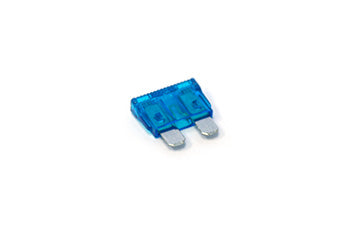

The 590-585-008 is a 15-amp fast-acting electrical fuse designed for critical control circuit protection in Raymond electric lift trucks. This direct replacement fuse protects FU5 and FU6 control panel locations across models 4100, 4150, 4250, and 7400. Constructed with thermoset or glass body and metal end caps, it delivers reliable overcurrent protection to maintain safe equipment operation. Replace only with the same 15-amp rating to ensure proper circuit protection and equipment safety.
Specifications
Electrical
| Fuse Current Rating | 15A |
| Fuse Type | Fast-acting blade fuse |
| Circuit Protection Location | Control circuit FU5, FU6 |
| Protected Functions | Control panel safety interlocks and critical control functions |
Material & Construction
| Body Material | Thermoset or glass body with metal end caps |
Equipment Compatibility
| Compatible Raymond Models | 4100, 4150, 4250, 7400 |
| Equipment Type | Electric lift trucks |
Part Numbers
| Manufacturer Part Number | 590-585-008 |
| Part Designation | Fuse FU5 & FU6 |
Frequently Asked Questions
Q: What is the amperage rating of the RA 590-585-008 fuse?
A: The RA 590-585-008 is a 15 ampere blade-type fuse. This rating is specifically designed for FU5 and FU6 control circuit locations. Do not substitute higher amperage fuses in these positions.
Q: Which Raymond lift truck models and circuits does this fuse fit?
A: The RA 590-585-008 is compatible with Raymond electric lift truck models 4100, 4150, 4250, and 7400. It is designated for FU5 and FU6 control panel locations. Confirm your model series matches before ordering.
Q: What electrical functions does this fuse protect?
A: The RA 590-585-008 provides overcurrent protection for FU5 and FU6 control circuits. These circuits manage critical control panel functions and operator safety interlocks. Loss of this fuse will disable these control functions.
Q: Does this fuse replace an older 10 amp fuse?
A: The RA 590-585-008 is rated at 15 amps and is documented as replacing previous 10 amp versions. If upgrading from a 10 amp to this 15 amp fuse, verify circuit wiring and components can safely handle the higher amperage rating.
Q: Are there cross-reference part numbers for the RA 590-585-008?
A: No documented cross-reference or superseded part numbers have been identified. Use the exact OEM part number RA 590-585-008 to ensure compatibility with your Raymond equipment.
