Raymond Fuse FU3 500 Amp - Electric Lift Truck Main DC
RA 590-587-119
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

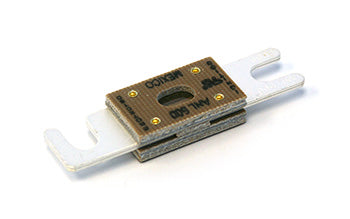

Raymond RA 590-587-119 Fuse FU3, 500 amp rated, bolt-in type for electric lift truck main DC power circuit. OEM part number cross-referenced as RA590-587/119, RA590587/119, and 590587/119. Features silver alloy element and ceramic core with tin-plated copper terminals. Compatible with Raymond electric lift truck models.
Specifications
Electrical
| Rated Current | 500 amp (maximum continuous) |
| Fuse Type | FU3, bolt-in type |
| Application | Main power fuse for DC electric lift circuit |
| Voltage Rating | DC circuit, application rated (voltage value not explicitly stated in manufacturer documentation) |
Part Numbers
| OEM Part Number | RA 590-587-119 |
| Cross-Reference Part Numbers | RA590-587/119, RA590587/119, 590587/119 |
Frequently Asked Questions
Q: What is the amperage rating for the RA 590-587-119 fuse?
A: The RA 590-587-119 is rated for 500 amperes maximum continuous current. It is designated as FU3 and is a bolt-in type fuse for electric lift truck main DC power circuits.
Q: What are the alternative part number formats for the RA 590-587-119?
A: The RA 590-587-119 can be cross-referenced using the following part numbers: RA590-587/119, RA590587/119, or 590587/119. All formats represent the same OEM component.
Q: What internal construction does the RA 590-587-119 feature?
A: The RA 590-587-119 features a silver alloy element and ceramic core for reliable current interruption and thermal stability. Terminals are tin-plated copper for corrosion resistance and secure connections.
Q: What application is the RA 590-587-119 designed for?
A: The RA 590-587-119 is the main power fuse for DC electric lift truck circuits. It protects the high-amperage battery supply lines in Raymond electric lift trucks requiring 500-ampere capacity.
Q: Which Raymond lift truck models are compatible with the RA 590-587-119?
A: The RA 590-587-119 is compatible with Raymond electric lift truck models that require 500-ampere fuse protection. Confirm your specific model operates at this amperage rating before ordering.
