Product Description

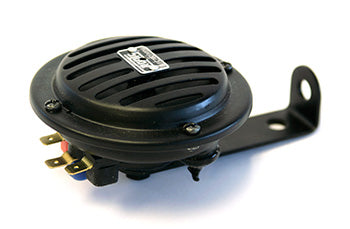

Raymond RA 590-643-005 is a 36VDC mechanical horn with heavy-duty steel construction, intended for use on Raymond electric lift trucks and pallet trucks. Features a 3-terminal connection and delivers 116 dB sound pressure output. Includes cross-reference numbers RA590-643/005 and 590643/005. Designed for direct OEM replacement in 36V Raymond systems.
Specifications
Application
| Model Compatibility | Compatible with Raymond electric pallet trucks and lift trucks equipped for 36V horn |
Electrical
| Nominal Voltage | 36VDC |
| Terminal Configuration | 3-terminal connection |
Material & Construction
| Enclosure Material | Heavy-duty steel shell |
Part Numbers
| OEM Part Number | RA 590-643-005 |
| Manufacturer Part Number | RA590-643/005 |
| Alternate Part Number | 590-643/005 |
| Cross-Reference Part Numbers | RA590643/005, 590643/005 |
Frequently Asked Questions
Q: What is the voltage specification for the RA 590-643-005 mechanical horn?
A: The RA 590-643-005 is rated for 36VDC operation. This horn is designed for higher-voltage Raymond electric systems and cannot be used on 24V equipment.
Q: What is the sound output level of the RA 590-643-005?
A: The RA 590-643-005 delivers 116 dB of sound pressure output. This 2 dB increase over the 24V model provides louder audible warnings in high-noise warehouse environments.
Q: What material is used in the RA 590-643-005 construction?
A: The RA 590-643-005 features heavy-duty steel shell construction. Steel provides superior mechanical strength and durability compared to plastic housings in demanding lift truck applications where impact resistance is critical.
Q: Does the RA 590-643-005 use a 3-terminal connection?
A: Yes. The RA 590-643-005 has a 3-terminal connection configuration. Verify your wiring harness accommodates this terminal layout before ordering.
Q: What cross-reference numbers are available for the RA 590-643-005?
A: Cross-reference numbers for this 36VDC horn include RA590-643/005 and 590643/005. These numbers identify equivalent OEM replacement parts if the primary SKU is not in stock.
Q: Is the RA 590-643-005 a direct OEM replacement for Raymond 36V systems?
A: Yes. The RA 590-643-005 is designed as a direct OEM replacement for 36V Raymond electric lift trucks and pallet trucks. Confirm your equipment uses 36VDC before ordering.
