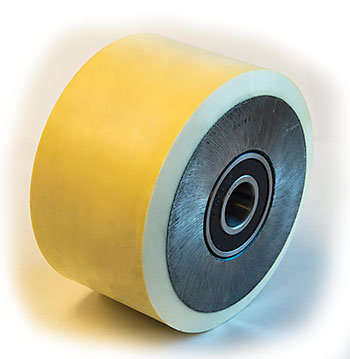

Raymond Load Wheel Assembly 6.00 Diameter 97A Dur
RA 632-156-XL-A
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description
The Raymond RA 632-156-XL-A Load Wheel Assembly is a precision-engineered replacement wheel featuring a design. Built with XL-grade 97A durometer polyurethane tread, a sealed ball bearing for smooth rotation, and a machined steel core for structural durability, this wheel assembly delivers reliable performance for high-cycle electric pallet truck operations. Direct replacement for earlier part 632-156-ASM and compatible with Raymond electric pallet trucks.
Specifications
Material & Construction
| Tread Material | Polyurethane (XL 97A hardness) |
| Durometer Rating | 97A |
| Core Material | Machined steel |
Mechanical Specifications
| Bearing Type | Precision sealed ball bearing |
Part Numbers & Compatibility
| Part Number | RA 632-156-XL-A |
| Alternate Part Number | RA632-156-XL-A |
| Cross-Reference Part Numbers | Replaces RA632-156-ASM, supersedes RA632-156-001-XL, equivalent to TVH 0L2495-P0-77, Stellana PW0L2495-P0-77 |
| Compatible Models | Raymond 5200, 5400, 5500 Series electric pallet trucks |
Frequently Asked Questions
Q: What components comprise the RA 632-156-XL-A load wheel assembly?
A: The RA 632-156-XL-A is a complete load wheel assembly featuring a machined steel core, precision sealed ball bearing, and XL-grade polyurethane tread rated at 97A durometer hardness.
Q: What Raymond pallet truck models are compatible with the RA 632-156-XL-A?
A: The RA 632-156-XL-A is compatible with Raymond electric pallet truck models 5200, 5400, and 5500 series. Always verify your equipment serial range to confirm compatibility before ordering.
Q: What is the direct replacement part number for the RA 632-156-XL-A?
A: The RA 632-156-XL-A replaces the earlier part number RA 632-156-ASM. Both part numbers refer to the same complete wheel assembly with bearing specifications.
Q: How does the sealed ball bearing affect performance and maintenance?
A: The precision sealed ball bearing reduces friction and extends wheel rotation efficiency. Sealed bearings minimize maintenance requirements by preventing dirt and moisture contamination compared to open bearing designs.
Q: Why is the machined steel core important in the RA 632-156-XL-A assembly?
A: The machined steel core provides structural rigidity and load-bearing strength necessary for high-cycle electric pallet truck operations. The steel core resists deformation under repetitive impact and sustained load conditions.
Q: What is the expected service life of the RA 632-156-XL-A wheel assembly?
A: The RA 632-156-XL-A service life depends on load weight, daily cycle volume, and floor surface conditions. Monitor tread wear and replace when wear exceeds 20 percent of original thickness or bearing play becomes evident.
