Raymond Pin Hinge Weldment for Electric Trucks
RA 671-012-15
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

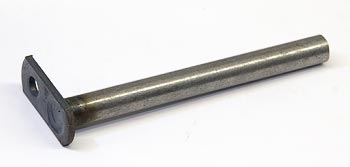

Raymond RA 671-012-15 Pin Hinge Weldment: OEM hinge assembly component for electric lift truck models; high-strength steel, weldable, cylindrical pin geometry. Designed for frame hinge positions on Raymond 8300, 8400, and 8500 electric pallet trucks. No cross-reference or superseding part numbers available.
Specifications
Dimensional Specifications
| Design Reference | Dimensional profile must match OEM hinge pin weldment for Raymond 8300/8400/8500 |
Material & Construction
| Material | High-strength steel, weldable grade |
| Manufacturing Process | Precision-machined and welded construction |
Part Numbers
| OEM Part Number | RA 671-012-15 |
| Compatible Equipment Models | Raymond 8300, Raymond 8400, Raymond 8500 (based on adjacent hinge pin family convention) |
Frequently Asked Questions
Q: What is the RA 671-012-15 pin hinge weldment used for?
A: The RA 671-012-15 is an OEM hinge assembly component for frame mounting on Raymond electric pallet trucks. It features a cylindrical pin geometry and high-strength steel construction designed to support the mechanical hinging action required during lift truck operation.
Q: Which Raymond equipment models use the RA 671-012-15 hinge weldment?
A: The RA 671-012-15 is designed for Raymond 8300, 8400, and 8500 series electric pallet trucks. Verify your equipment serial range and model designation before ordering to confirm compatibility.
Q: What is the RA 671-012-15 made from and how is it manufactured?
A: The RA 671-012-15 is manufactured from high-strength, weldable steel grade. It is produced through precision machining and welded construction processes to ensure dimensional accuracy and structural integrity required for frame hinge mounting.
Q: Are there cross-reference or superseding part numbers for the RA 671-012-15?
A: No cross-reference or superseding part numbers have been identified for the RA 671-012-15. Order this OEM part number directly for correct fitment on Raymond 8300, 8400, and 8500 equipment.
Q: What signs indicate the RA 671-012-15 hinge weldment needs replacement?
A: Replace the RA 671-012-15 if you observe visible cracks or fractures in the weldment, excessive movement at the hinge joint, frame misalignment, or decreased structural rigidity. A damaged hinge weldment compromises frame stability and operational safety.
