Product Description

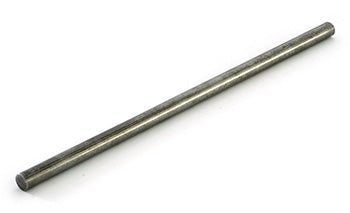

The Raymond RA 828-001-335-009 Roller Shaft is a precision-machined steel component designed for 16.5-inch battery compartments on Raymond 7500 and 7520 electric reach trucks. This durable shaft provides essential support for roller assemblies within the battery compartment, enabling smooth battery movement and secure positioning during lift truck operation. Direct replacement for part 828-001-335, with cross-reference equivalents including 828-001-335/009 and 828001335009.
Specifications
Material & Construction
| Material Specification | Machined steel shaft, high-strength for heavy-duty battery compartment use |
| Shaft Type | Precision-machined carbon steel roller support |
| Compartment Width | 16.5 inches |
Part Numbers
| Part Number | RA 828-001-335-009 |
| Cross-Reference Part Numbers | 828-001-335/009, 828001335009 |
| Replaces | 828-001-335 |
| Compatible Equipment Models | Raymond 7500, 7520, R35TT, R45TT reach truck series |
Frequently Asked Questions
Q: What is the RA 828-001-335-009 roller shaft?
A: The RA 828-001-335-009 is a precision-machined steel roller shaft designed for 16.5-inch battery compartments on Raymond electric reach trucks. It provides structural support for roller assemblies that enable battery movement within the compartment.
Q: Which Raymond equipment models use this roller shaft?
A: The 0000-828-001-335-009 is compatible with Raymond 7500, 7520, R35TT, and R45TT electric reach truck series equipped with 16.5-inch battery compartments.
Q: What material is this roller shaft made from?
A: The shaft is manufactured from precision-machined carbon steel, selected for its strength and durability to support full battery load cycles without deflection or failure.
Q: What part number does the RA 828-001-335-009 replace?
A: The RA 828-001-335-009 replaces and supersedes the earlier designation 828-001-335. Cross-reference equivalents include 828-001-335/009 and 828001335009.
Q: How do I verify this is the correct roller shaft for my reach truck?
A: Confirm your equipment model (7500, 7520, R35TT, or R45TT) and verify your battery compartment width is 16.5 inches. Raymond also manufactures this shaft in 18.5-inch and 21.5-inch widths for larger compartments.
Q: Can this roller shaft be reused or refurbished?
A: The RA 828-001-335-009 is a wear component. Inspect for bending, cracks, or excessive wear before reuse. If the shaft shows signs of deformation or damage under load, replace with a new unit to maintain compartment integrity.
Q: How should this roller shaft be stored?
A: Store in a dry environment protected from moisture and extreme temperature fluctuations. Keep away from corrosive substances. Store horizontally or vertically in a secure location to prevent bending.
