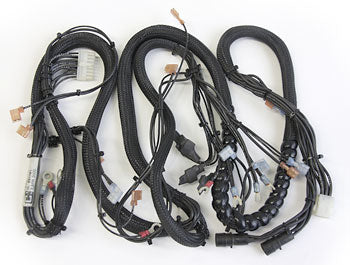

RA 859-136-783

Frequently Asked Questions

Q: What is the RA 859-136-783 wiring harness used for?
A: The RA 859-136-783 is an OEM wiring harness assembly designated as a control station harness for Raymond electric lift trucks. It connects control inputs to the main electrical system and relay logic.

Q: Which Raymond pallet jack models does this wiring harness fit?
A: The RA 859-136-783 is an OEM component for Raymond walkie and electric pallet truck models. Confirm your exact equipment model number and serial range to verify fitment before ordering.

Q: What symptoms indicate a wiring harness needs replacement?
A: Harness failure signs include intermittent electrical function, total loss of control response, visible damage such as cut or melted insulation, corrosion at connectors, or flickering control system indicators. Continuity failures or burned wire sections require harness replacement.

Q: Is the RA 859-136-783 compatible with non-Raymond equipment?
A: The RA 859-136-783 is an OEM Raymond harness assembly and is not recommended for use on Crown, Toyota, Yale, Hyster, or other brands without connector type and pinout verification against your specific equipment.

Q: What does the C/S designation on this part mean?
A: The C/S designation indicates this is a Control Station harness variant. This designates the harness is configured for the control handle or operator station assembly of the Raymond truck.
