Product Description

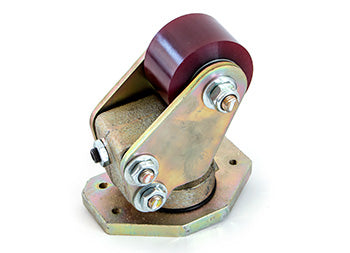

Raymond Caster Assembly (SKU: RA 939-352-259) engineered for 102XM electric walkie pallet jacks. Complete assembly includes polyurethane wheel (95A or 97A), sealed ball bearing (BS 1621 2RS), axle screw, and lock nut. Precision fit for frame and undercarriage applications on Raymond electric lift equipment.
Specifications
Compatibility
| Compatible Models | Raymond 102XM Electric Walkie Pallet Jack |
Part Information
| Part Number | 939-352-259 |
| Manufacturer | Raymond |
Specifications
| Wheel Type | Polyurethane |
| Wheel Hardness (Durometer) | 95A or 97A |
| Bearing Type | Sealed Ball Bearing (BS 1621 2RS) |
| Included Components | Polyurethane wheel, sealed ball bearing, axle screw, lock nut |
Frequently Asked Questions
Q: What components are included in the RA 939-352-259 caster assembly?
A: The RA 939-352-259 complete caster assembly includes a polyurethane wheel (95A or 97A durometer), sealed ball bearing (BS 1621 2RS specification), axle screw, and lock nut. This is a fully integrated unit requiring no additional assembly.
Q: Which Raymond equipment is the RA 939-352-259 designed for?
A: The RA 939-352-259 is engineered specifically for Raymond 102XM Electric Walkie Pallet Jacks. It is designed for frame and undercarriage applications on this model. Verify equipment compatibility before ordering.
Q: What is the difference between the 95A and 97A polyurethane wheel options?
A: The durometer rating indicates hardness and wear resistance. 95A polyurethane is softer, providing better grip and shock absorption. 97A is slightly harder, offering increased wear resistance and lower rolling resistance. Choose based on floor conditions and application requirements.
Q: What bearing specification does this caster assembly use?
A: The RA 939-352-259 uses sealed ball bearings to BS 1621 2RS specification. The 2RS designation means the bearings are sealed on both sides (double sealed) for protection against contamination and extended lifespan in material handling environments.
Q: How long does the polyurethane wheel typically last in normal operation?
A: Wheel lifespan depends on floor conditions, load weight, and operating hours. Polyurethane wheels typically last 12 to 24 months under continuous warehouse use. Softer compounds (95A) wear faster but grip better; harder compounds (97A) last longer. Replace when visible wear flattening occurs or noise increases.
Q: Are replacement wheels or bearings available separately from the complete RA 939-352-259 assembly?
A: The RA 939-352-259 is sold as a complete caster assembly. Individual replacement wheels or bearings may be available as separate SKUs. Contact us to inquire about component-level replacements if needed.
