Drive Tire Hub Assembly for Raymond 102XM, 8210
RA 939-353-075
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

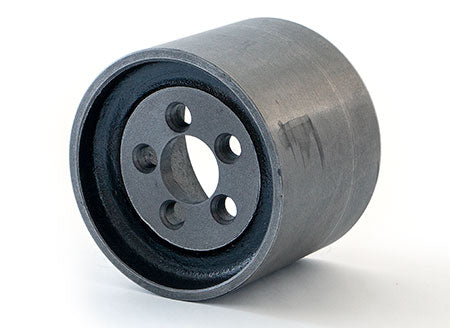

Raymond drive tire hub assembly for 102XM walkie and 8210 electric pallet trucks. Heavy-duty cast steel hub component with precision machine finish, designed for polyurethane drive tires. Features press-fit interface for 6205 series bearing. Delivers reliable performance and durability under full load capacity. Secured with RA 939-353-077 lug nuts. Available as stand-alone hub or complete drive tire assembly (RA 939-353-086, RA 939-352-084).
Specifications
Material & Construction
| Construction | Heavy duty cast steel hub with precision machine finish |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 102XM, 8210 |
| Part Number | RA 939-353-075 |
| Compatible Equipment Model | Raymond 102XM Walkie |
| Related Assembly Part Number | RA 939-353-086 (complete drive tire assembly with hub) |
| Compatible Drive Tire Assembly Part Numbers | RA 939-353-086 and RA 939-353-084 |
Wheel Dimensions
| Interior Diameter | 6.50 inch |
| Outer Diameter | 10.00 inch |
| Tread Width | 4.00 inch |
| Hub Mounting Width | 5.00 inch |
Additional Specifications
| Mounting Fit | Press fit for 6205 series bearing interface |
| Secured Using | RA 939-353-077 lug nuts |
Frequently Asked Questions
Q: Which Raymond models is the RA 939-353-075 compatible with?
A: The RA 939-353-075 is compatible with Raymond 102XM and 8210 models. It serves as a stand-alone hub component for these model lines.
Q: What material is the RA 939-353-075 made from?
A: The RA 939-353-075 is constructed from heavy-duty cast steel with a precision machine finish. This ensures durability and proper bearing interface.
Q: Are there complete drive tire assemblies that include the RA 939-353-075?
A: Yes. The RA 939-353-075 is used in complete drive tire assemblies RA 939-353-086 and RA 939-353-084. These assemblies include the hub along with other necessary components.
Q: What hardware is used to secure the RA 939-353-075?
A: The RA 939-353-077 lug nuts are used to secure the hub assembly. Ensure you use the exact part number for proper fit and load rating.
Q: What are the replacement guidelines for the RA 939-353-075?
A: When replacing the RA 939-353-075, ensure compatibility with your Raymond model. Always use the correct part number and verify that all components match the original specifications.
