Battery Charger for Raymond Electric Lift Trucks
RA 939-353/286
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

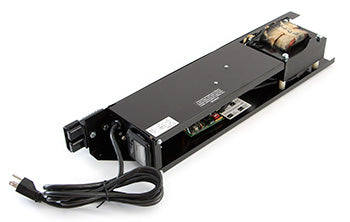

Raymond OEM battery charger RA 939-353/286 is a 24V charger designed for electric lift truck and walkie pallet truck applications. Compatible with Raymond 102XM series and select Toyota lift trucks, this charger features single-bank output, supports lead acid battery chemistries, and is equipped with SB175 connector. Input rating is 120VAC at 6A; output provides 28VDC for charging, 27VDC float, with up to 15A max DC current. Enclosure is cast metal, sized 23 x 3 x 5.25 inches, designed for on-bo
Specifications
Part Numbers & Compatibility
| Make | Raymond, Toyota |
| Model | 102XM |
| Part Number | RA 939-353/286 |
| Cross-Reference Part Numbers | Replaces RA939-353-284, RA939-352-207, Toyota 00590-43337-71, Raymond Prime Mover RA313799-001, RA850-138-139-02 |
| Compatible Equipment | Raymond 102XM Walkie Electric Pallet Truck, Toyota 7HBW23, 8HBW23 (older models 8HBW23) |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 15 A |
| Charge Profile | lead-acid |
| Connector Type | SB175 |
| Battery Chemistry | lead-acid |
| Charger Output Voltage | 28VDC charging, 27VDC float |
| Battery Voltage | 24VDC nominal |
| Maximum AC Current Draw | 6 amps |
| Maximum DC Output Current | 15 amps |
Wheel Dimensions
| Enclosure Dimensions | 23 x 3 x 5.25 inches |
Additional Specifications
| Input Frequency | 60 Hz |
| Output Banks | Single bank |
| Enclosure Material | Cast metal |
Frequently Asked Questions
Q: What is the output voltage and current of RA 939-353/286?
A: RA 939-353/286 is a 24V battery charger providing 28VDC output for charging and 27VDC float mode. Maximum DC current output is 15A.
Q: Which lift trucks is RA 939-353/286 compatible with?
A: RA 939-353/286 is compatible with Raymond 102XM series walkie electric pallet trucks and select Toyota lift truck models including 7HBW23 and 8HBW23.
Q: What battery chemistry does RA 939-353/286 support?
A: This charger is designed for lead acid battery chemistries commonly used in electric lift trucks.
Q: What are the cross-reference part numbers for RA 939-353/286?
A: RA 939-353/286 replaces RA939-353-284, RA939-352-207, and is equivalent to Toyota 00590-43337-71 and Raymond Prime Mover RA313799-001. It also cross-references to RA850-138-139-02.
Q: What connector type does RA 939-353/286 use?
A: RA 939-353/286 features an SB175 connector.
Q: What is the input power rating of RA 939-353/286?
A: The input power rating for RA 939-353/286 is 120VAC at 6A.
