Product Description

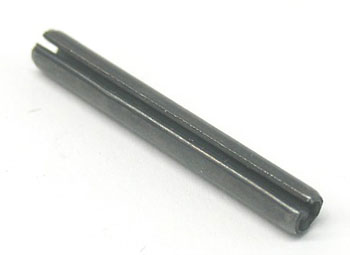

The RA 810-745 is a high-carbon heat-treated roll pin engineered for Raymond electric pallet jack steer arm assemblies. This precision-engineered fastener delivers reliable alignment and shock absorption, ensuring stable steering performance and long-term equipment durability. Direct replacement for equivalent part numbers 810-745 and RA810-745.
Specifications
Material & Construction
| Material Specification | SAE 1070-1090 or equivalent |
| Material Grade | High-carbon heat-treated steel |
Mechanical Specifications
| Pin Type | Slotted/coiled type roll pin |
| Design Standard | ANSI B18.8.2 construction |
| Fitting Method | Press-fit |
| Primary Function | Alignment and shock absorption in steer arm assembly |
Part Numbers & Cross-References
| Primary Part Number | RA 810-745 |
| Alternate Part Numbers | 810-745, RA810-745, 810745 |
| Equivalent Replacement | Direct replacement for 810-745 |
Frequently Asked Questions
Q: What equipment does the RA 810-745 roll pin fit?
A: The RA 810-745 is an OEM fastener for Raymond electric lift trucks, specifically designed for the steer arm assembly on Raymond model 101 pallet jacks. It is a direct replacement for OEM part numbers RA 810-745, RA810-745, and 810-745.
Q: What material is the RA 810-745 made from?
A: The RA 810-745 is manufactured from high-carbon heat-treated steel meeting SAE 1070-1090 specifications. This material provides strength and resilience for shock absorption in the steer arm assembly.
Q: What is the design type of the RA 810-745?
A: The RA 810-745 is a slotted or coiled type roll pin engineered for press-fit installation. The design provides mechanical alignment and fastening in the steer arm assembly.
Q: Are there cross-reference part numbers for the RA 810-745?
A: Yes. The RA 810-745 is equivalent to manufacturer part number 810-745, and also referenced as RA810-745 and Raymond 810-745. All variants represent the same OEM component.
