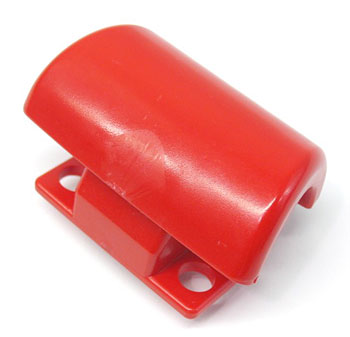

Button Nose Assembly for Raymond Electric Lift Truck
RA 850-135-976-001
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
The RA 850-135-976-001 is a button nose assembly engineered for Raymond electric lift truck control handles. This assembly features a durable polymer actuator combined with glass-filled nylon housing for reliable performance in demanding warehouse environments. The panel-mount design with quick-connect terminals provides secure, repeatable connections without equipment modification. Cross-referenced as 850-135-976/001, this is a direct replacement control component for Raymond electric pallet jack applications.
Specifications
Electrical
| Contact Rating | Industrial low-voltage signal circuit, nominal 24VDC |
Material
| Switch Button Material | Engineering-grade polymer actuator |
| Body Material | Glass-filled nylon housing |
Part Numbers
| OEM Part Number | RA 850-135-976-001 |
| Alternate Part Numbers | 850-135-976/001, 850-135-976-001, RA850-135-976/001, RA850-135-976-001 |
| Cross-Reference Part Numbers | 850-135-976/001 |
| Related Part Numbers | 850-135-976-005 (aftermarket switch button) |
Frequently Asked Questions
Q: What equipment does the RA 850-135-976-001 button nose assembly fit?
A: The RA 850-135-976-001 is an OEM switch button assembly for Raymond electric lift truck control handles, compatible with Raymond model 101 pallet jacks. Cross-reference: 850-135-976/001.
Q: What are the material specifications for the RA 850-135-976-001?
A: The RA 850-135-976-001 features a durable polymer actuator combined with glass-filled nylon housing. This engineering-grade construction provides reliable performance in repeated daily cycling and meets OEM durability standards for electric lift truck applications.
Q: How does the RA 850-135-976-001 connect to the control handle?
A: The RA 850-135-976-001 uses a panel-mount design with quick-connect terminals. These terminals are engineered for secure, repeatable connections on Raymond electric lift truck control handles without modification to existing equipment.
Q: What are the alternate part numbers for the RA 850-135-976-001?
A: The RA 850-135-976-001 is cross-referenced as 850-135-976/001 and is equivalent to part numbers 850-135-976/001 and 850-135-976-001. Verify your equipment documentation matches the OEM part number before ordering.
Q: Is there an aftermarket alternative to the RA 850-135-976-001?
A: The aftermarket equivalent part number is 850-135-976-005. However, always verify compatibility with your specific Raymond equipment model and control handle configuration before substituting parts.
