Product Description

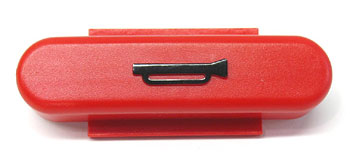

Raymond OEM horn button, part number RA 850-135-947-101, specified for electric lift truck steer handle switch assemblies. Features impact-resistant thermoplastic actuator, 5A contact rating at 24VDC, M16 x 1.5 mounting thread, and momentary push-button operation. Designed for 100,000 cycle service life in demanding industrial environments.
Compatibility: Fits pallet jacks made by Raymond, model 101. SKU: RA 850-135-947-101
Specifications
Dimensional Specifications
| Mounting Clearance Requirements | Minimum 0.85 inch behind panel |
Electrical Specifications
| Contact Rating | 5A at 24VDC resistive load |
| Terminal Type | Solder-type terminal, 0.110 inch wide tab |
Material & Construction
| Insulation Material | Molded phenolic base |
Part Numbers & Compatibility
| OEM Part Number | RA 850-135-947-101 |
Performance Specifications
| Service Life | Rated for 100,000 cycles minimum |
Frequently Asked Questions
Q: What is the RA 850-135-947-101 horn button?
A: The RA 850-135-947-101 is an OEM horn button designed for Raymond electric lift truck steer handle switch assemblies. It features an impact-resistant thermoplastic actuator and provides momentary push-button operation rated for 100,000 cycles minimum service life in demanding industrial environments.
Q: Which Raymond models are compatible with the RA 850-135-947-101?
A: The RA 850-135-947-101 is compatible with Raymond model 101 electric pallet trucks. The part features M16 x 1.5 mounting thread and requires minimum 0.85 inch clearance behind the mounting panel.
Q: What are the electrical specifications for the RA 850-135-947-101?
A: The RA 850-135-947-101 is rated for 5A contact at 24VDC resistive load. It features solder-type terminals with 0.110 inch wide tabs. Terminal type and amperage rating must match your steer handle control circuit specifications.
Q: What materials and construction details define the RA 850-135-947-101?
A: The button features an impact-resistant thermoplastic actuator and a molded phenolic base for insulation. The M16 x 1.5 mounting thread accommodates standard panel thicknesses. This construction provides durability in warehouse and dock environments.
Q: What is the expected service life and failure pattern for the RA 850-135-947-101?
A: The RA 850-135-947-101 is rated for 100,000 cycles minimum. Typical failure modes include contact wear causing reduced electrical continuity, mechanical actuator brittleness from temperature cycling, or solder tab corrosion. High-use trucks may require replacement at 50,000 to 75,000 cycles.
