Raymond

RA 570-360-512

RA 570-360-512

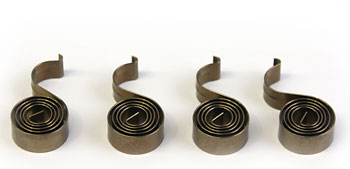

Brush Spring Set

$99,999.00
$99,999.00
⚠️ Compatibility Recommended Before Purchase
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.

Before ordering, confirm:
  • Equipment make and model
  • Serial number (if applicable)
  • Operating voltage
  • Rotation direction (CW / CCW)
  • Shaft diameter and length
  • Mounting pattern and flange type

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
101 Brushes Call for Price Drive Motor Electric Lift Truck Parts Raymond

Compatibility

Make Raymond
Model 101

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

Brush Spring Set

Compatibility: Fits pallet jacks made by Raymond, model 101. SKU: RA 570-360-512

Frequently Asked Questions

Q: What equipment does RA 570-360-512 fit?
A: RA 570-360-512 is a brush spring set designed specifically for the Raymond model 101 electric pallet jack. This is the spring complement for the Raymond 101 drive motor brush assembly.

Q: What is included in the RA 570-360-512 brush spring set?
A: RA 570-360-512 is a complete spring set for the Raymond model 101 brush assembly. It includes all springs required to maintain proper brush contact pressure and commutator engagement in that motor configuration.

Q: Can RA 570-360-512 be used with RA 570-360-511?
A: RA 570-360-512 springs are engineered for the Raymond model 101 brush system. If replacing worn springs in a brush assembly, verify that your brush set and spring set are both rated for the Raymond 101 to ensure factory specifications are met.

Q: How does spring tension affect brush performance?
A: Proper spring tension in RA 570-360-512 maintains consistent brush-to-commutator contact pressure, ensuring uniform current transfer and minimizing brush chatter or arcing in the Raymond 101 motor. Worn springs can cause performance degradation and should be replaced.

Q: Is RA 570-360-512 a Raymond OEM part?
A: Yes, RA 570-360-512 is a Raymond OEM brush spring set engineered to Raymond specifications for the model 101 electric pallet jack. It meets factory spring tension and material requirements for that equipment.
