24VDC Battery Charger for Raymond Electric Lift Trucks
RA 850-138-139-02
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

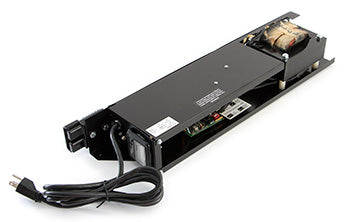

The Raymond RA 850-138-139-02 is a 24VDC industrial battery charger designed for Raymond electric pallet jacks. This direct replacement charger delivers 25A output and features a durable powder-coated steel enclosure. Supports both wall and bench mounting configurations, making it ideal for workshop and warehouse environments. Compatible with Raymond model 101 lift trucks and similar equipment using 24VDC lead-acid battery systems.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 101, 102XM |
| Part Number | RA 850-138-139-02 |
| Manufacturer Part Number | RA85013813902 |
| Equivalent Part Numbers | 85013813902 |
| Cross-Reference Part Numbers | RA 850-138-139-02, RA850-138-139-02, RA85013813902, 85013813902 |
| Designed Application | Industrial material handling equipment, specifically Raymond electric pallet jacks |
| Cross Reference Part Numbers | RA 850-138-139-02, RA850-138-139-02, RA85013813902, 85013813902 |
| Compatibility | Fits pallet jacks made by Raymond, model 101 |
Electrical Specifications
| Voltage | 24 V |
| Rated Output Voltage | 24VDC nominal output |
| Output Current | 25A |
| Charger Housing Material | Powder-coated steel |
Additional Specifications
| Enclosure Type | Steel enclosure with powder coat finish |
| Mounting Options | Supports both wall and bench mounting |
Frequently Asked Questions
Q: What are the specifications of the RA 850-138-139-02 battery charger?
A: The RA 850-138-139-02 is a 24VDC industrial battery charger with 25A output capacity. It features a powder-coated steel enclosure for durability and supports both wall-mount and bench-mount installation.
Q: Which Raymond models are compatible with the RA 850-138-139-02?
A: The RA 850-138-139-02 is designed for Raymond electric lift truck models 101 and 102XM. It supports 24VDC lead-acid battery systems used in these models.
Q: What type of batteries does the RA 850-138-139-02 charge?
A: The RA 850-138-139-02 is rated for lead-acid industrial batteries used in electric lift trucks. It delivers 25A charging current at 24VDC nominal output.
Q: Can the RA 850-138-139-02 be mounted on a wall or bench?
A: Yes, the RA 850-138-139-02 supports both wall-mount and bench-mount configurations. The powder-coated steel enclosure is rated for industrial environments.
Q: What cross-reference part numbers match the RA 850-138-139-02?
A: The RA 850-138-139-02 has cross-reference part numbers: RA850-138-139-02, RA85013813902, and 85013813902. These are equivalent designations for the same charger unit.
Q: How do I know if the RA 850-138-139-02 is the right replacement charger for my equipment?
A: Verify that your equipment uses a 24VDC lead-acid battery system and is compatible with Raymond model 101 or 102XM. Check the battery connector type and ensure it matches the charger specifications.
