Product Description

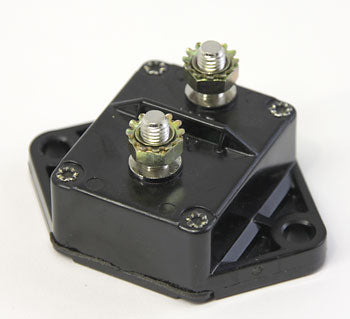

Raymond circuit breaker (850-136-795-080) is an 80 amp manual-reset single-pole breaker designed for main circuit protection in electric lift truck systems. Features panel-mount design with 10-32 stud terminals for secure electrical connections. Compatible with 101 series controllers, this breaker safeguards the main electrical circuit and provides reliable operation for Raymond electric pallet jacks and lift trucks.
Specifications
Electrical
| Circuit Breaker Current Rating | 80A (amperes) continuous |
| Reset Type | Manual reset |
| Pole Configuration | Single pole |
| Mount Type | Panel mount |
| Terminal Type | 10-32 stud terminals |
| Application Category | Main circuit protection for Raymond electric lift trucks, 101 controller series |
Part Numbers
| Part Number | RA 850-136-795-080 |
| Alternate Part Number | 850-136-795-080 |
Frequently Asked Questions
Q: What is the amperage rating of the 850-136-795-080 circuit breaker?
A: This circuit breaker is rated for 80 amps continuous, providing main circuit protection for Raymond 101 series electric lift trucks. This rating ensures protection of the main electrical circuit.
Q: What equipment does the 850-136-795-080 fit?
A: This circuit breaker is compatible with Raymond 101 series electric pallet jacks and lift trucks that use 101 controller series. It is a direct replacement for Raymond factory-spec components.
Q: What does manual-reset mean?
A: Manual-reset means the breaker must be physically reset by the operator after it trips due to an overload or fault condition. This design provides a safety checkpoint before the equipment can be restarted.
Q: How is this breaker connected electrically?
A: The 850-136-795-080 uses 10-32 stud terminals for connection to the main control panel. These terminals provide secure attachment to the lift truck electrical system.
Q: What does it mean if the breaker trips?
A: When the breaker trips, it interrupts power to the main circuit and stops lift truck operation, protecting the electrical system from overcurrent or fault damage. Once the fault is resolved, the breaker can be manually reset.
Q: Can this breaker be used on other lift truck brands?
A: This breaker is specifically designed for Raymond 101 series lift trucks. Compatibility with other brands or series is not documented; consult your equipment manufacturer for appropriate replacement breakers.
