Product Description

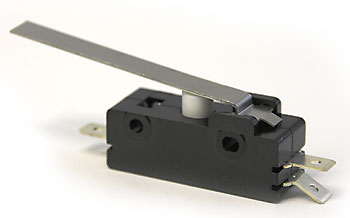

The RA 1-150-366 is an electromechanical limit switch designed for Raymond 101 Series electric pallet trucks. Featuring lever actuation with snap-action contacts, this reliable switching component delivers consistent performance in material handling operations. Rated for 10A at 250VAC with silver alloy contacts and molded phenolic housing, it provides durable operation in warehouse and distribution environments. Panel-mount design with precise 1.00-inch center-to-center mounting hole spacing ensures direct fit compatibility with Raymond 101 equipment.
Specifications
Dimensional Specifications
| Mounting Hole Spacing | 1.00 inch center-to-center |
Electrical
| Rated Voltage | Maximum 250VAC |
| Rated Current | 10A at 250VAC |
Material & Construction
| Housing Material | Molded phenolic resin |
| Contact Material | Silver alloy |
Part Information
| Part Number | RA 1-150-366 |
| Compatible Models | Raymond 101 Series Pallet Trucks |
Performance Specifications
| Actuation Force | Minimum 150 gf |
| Service Factor | 1.00 (continuous) |
| Switch Type | Electromechanical momentary contact |
Frequently Asked Questions
Q: What equipment does the RA 1-150-366 limit switch fit?
A: The RA 1-150-366 is designed for Raymond 101 Series electric pallet trucks. It provides direct fit compatibility with Raymond 101 equipment. Cross-reference compatibility with other brands has not been established.
Q: What are the electrical ratings for this limit switch?
A: The RA 1-150-366 is rated for 10A at 250VAC maximum. It features snap-action contacts with silver alloy material for reliable electrical switching performance in momentary contact applications.
Q: What is the physical construction and mounting method?
A: This switch has a molded phenolic resin housing with lever actuation and snap-action contacts. Panel mounting uses 1.00 inch center-to-center hole spacing. The lever requires a minimum actuation force of 150 grams-force.
Q: How long does this switch typically last in service?
A: The RA 1-150-366 is designed for continuous duty with a service factor of 1.00. Snap-action contact switches typically deliver reliable service life when operated within rated electrical and mechanical limits. Phenolic housing provides stable performance across normal temperature ranges for material handling environments.
