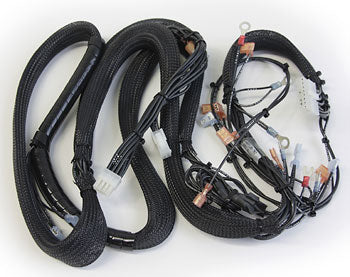

Main Wiring Harness for Raymond 101 Electric Pallet Jack
RA 850-136-782
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Raymond Main Wiring Harness RA 850-136-782 is an OEM interconnection assembly for the Raymond 101 Electric Pallet Jack, designed for main controller and contactor integration. Features copper stranded conductors with abrasion-resistant PVC insulation and factory OE connectors for 24VDC lift truck applications.
Compatibility: Fits pallet jacks made by Raymond, model 101. SKU: RA 850-136-782
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 101 |
| Typical Application Voltage | 24VDC system |
| Part Number | RA 850-136-782 |
| Manufacturer Part Number | 850-136-782 |
| Alternate Part Numbers | RA850-136-782, 850136782, Raymond 850-136-782, RA850136782, Raymond 850136782 |
| Cross-Reference Part Numbers | 850-136-782, RA850-136-782, 850136782, Raymond 850136782 |
| Cross Reference Part Numbers | 850-136-782, RA850-136-782, 850136782, Raymond 850136782 |
Electrical Specifications
| Control Voltage | 24VDC nominal |
Additional Specifications
| Description | Raymond Main Wiring Harness RA 850-136-782 is an OEM interconnection assembly for the Raymond 101 Electric Pallet Jack, designed for main controller and contactor integration. Features copper stranded conductors with abrasion-resistant PVC insulation and factory OE connectors for 24VDC lift truck applications. |
Frequently Asked Questions
Q: What is the RA 850-136-782 used for?
A: The RA 850-136-782 is an interconnection assembly that connects the main controller to the contactor in Raymond 101 electric pallet jacks. It handles power distribution for lift and lower functions.
Q: What material is the RA 850-136-782 made from?
A: This assembly features copper stranded conductors with abrasion-resistant insulation. The factory connectors are designed for secure mating and reliable operation in 24vdc applications.
Q: Which Raymond models is the RA 850-136-782 compatible with?
A: The RA 850-136-782 is designed specifically for Raymond 101 electric pallet jacks. Confirm compatibility with your equipment's model designation before ordering.
Q: What are the connector specifications for this part?
A: This assembly comes with factory connectors pre-installed. The connectors are rated for 24vdc applications and provide a weatherproof seal to prevent corrosion and electrical failure.
Q: What part numbers are equivalent to the RA 850-136-782?
A: This part is referenced as RA 850-136-782, 850-136-782, ra850-136-782, 850136782, Raymond 850-136-782, Raymond 850136782, and ra850136782. All reference the same wiring assembly.
Q: How long does the RA 850-136-782 typically last?
A: With normal maintenance, this wiring assembly can last the life of the pallet jack. Inspect periodically for damage or loose connectors and replace immediately if insulation is compromised.
