Product Description

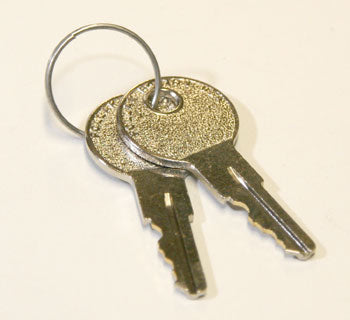

Replacement ignition key set for Raymond electric pallet jacks and electric lift trucks. Features nickel-plated steel construction with NG100 profile keyway for secure fit in Raymond ignition switch assemblies. Durable and reliable for warehouse and material handling operations.
Specifications
Dimensional Specifications
| Keyway Fit | NG100 profile matches OEM Raymond ignition switch |
Material & Construction
| Key Material | Nickel-plated steel |
Mechanical Specifications
| Torque Application | Hand torque only; not suitable for tool-assisted rotation |
| Lock Rotation Angle | Actuates 90° switch rotation |
Part Numbers
| OEM Part Number | RA 590-004-01 |
| Alternative Part Numbers | RA 590 004 01; 59000401 |
| Key Identification Mark | NG100 |
Performance Specifications
| Service Cycles | Rated for 10,000 insertion/removal cycles minimum |
Frequently Asked Questions
Q: What is the RA 590-004-01 and what equipment does it fit?
A: The RA 590-004-01 is an OEM ignition key set manufactured by Raymond for electric pallet jacks and electric lift trucks. It fits Raymond model 101 pallet jacks and other Raymond electric equipment equipped with NG100 profile ignition switch assemblies.
Q: What are the material and finish specifications for the RA 590-004-01 keys?
A: The RA 590-004-01 keys are manufactured from steel with a nickel-plated finish. The nickel plating provides corrosion resistance and durability in warehouse and outdoor material handling environments, extending service life compared to bare steel alternatives.
Q: What is the key profile and identification marking for the RA 590-004-01?
A: The RA 590-004-01 keys are marked with the NG100 profile identification. This marking ensures proper fit in Raymond NG100 keyway ignition switches. Verify your switch keyway matches NG100 before ordering this key set.
Q: How much torque can be applied when turning the RA 590-004-01 keys?
A: The RA 590-004-01 keys are designed for hand torque only and are not suitable for tool-assisted rotation. Excessive force or power tool application can damage the key, switch mechanism, or both. Always turn keys by hand.
Q: Are there alternative part numbers for the RA 590-004-01 key set?
A: The RA 590-004-01 has published alternative designations including RA 590 004 01 and 59000401. These three formats reference the same OEM key set and can be used interchangeably when ordering from our inventory.
Q: Will the RA 590-004-01 keys fit switch part number RA 590-004?
A: Yes. The RA 590-004-01 keys are designed to fit the RA 590-004 ignition switch. Both components share the NG100 profile specification, ensuring correct keyway engagement and reliable operation.
