Product Description

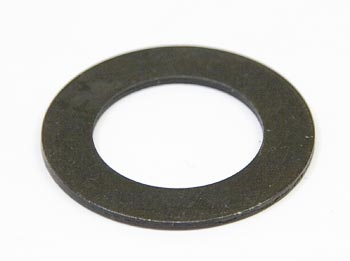

Raymond OEM flat washer RA 771-156 is a steel hardware component used in the undercarriage and frame assemblies of Raymond electric lift trucks, specified for tire and wheel mounting applications requiring 12 x 4.5 x 8 inch fitment.
Compatibility: Fits pallet jacks made by Raymond, model 101. SKU: RA 771-156
Specifications
Material & Construction
| Material Specification | Steel |
Part Numbers
| OEM Part Number | RA 771-156 |
Frequently Asked Questions
Q: What is the RA 771-156 and where is it used?
A: The RA 771-156 is a steel flat washer used in Raymond model 101 pallet jacks. It is specified for tire and wheel mounting applications in the undercarriage and frame assemblies of electric lift trucks.
Q: What are the dimensions of the RA 771-156?
A: The RA 771-156 is specified for 12 x 4.5 x 8 inch fitment requirements. This means outer diameter, bore diameter, and thickness dimensions are matched to Raymond model 101 wheel and tire fastening systems.
Q: Which Raymond models use the RA 771-156 washer?
A: The RA 771-156 is the OEM flat washer for Raymond model 101 electric pallet jacks. Verify your equipment serial number falls within the compatible range for this model series before ordering.
Q: What material and durability specifications does the RA 771-156 have?
A: The RA 771-156 is manufactured from steel, providing corrosion resistance and long-term durability in warehouse and cold storage environments. Steel composition meets Raymond OEM specifications for wheel mounting fastening.
Q: When should the RA 771-156 be replaced on a Raymond model 101?
A: Replace the RA 771-156 if tire fasteners are loose, the washer is cracked or permanently deformed, or corrosion compromises the fastening surface. Inspect wheel mounting points during routine maintenance.
Q: Can the RA 771-156 be used as a cross-reference for other washer part numbers?
A: The RA 771-156 is specific to Raymond model 101 wheel mounting applications. Do not substitute it for other washer part numbers without confirming dimension and bore specifications match your equipment.
