Product Description

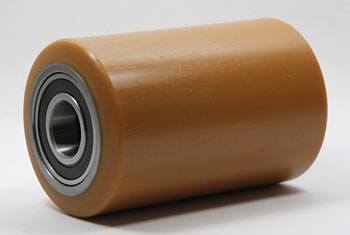

The Raymond RA 632-016-001-A is a complete poly load wheel assembly designed for Raymond 101 Series electric lift trucks. This direct replacement assembly features a 5-inch diameter, 3.25-inch wide Durarun 95A polyurethane wheel with a 2.047-inch bore and dual sealed ball bearings pre-installed. Built for load-side undercarriage service, this assembly provides reliable performance and extended service life in warehouse and dock operations.
Specifications
Compatibility
| Application | Raymond 101 Series electric lift trucks |
Material & Specifications
| Wheel Material | Durarun 95A polyurethane |
| Hardness | 95A Durometer (ASTM D2240) |
| Wheel Diameter | 5 inches |
| Wheel Width | 3.25 inches |
| Hub Bore | 2.047 inches |
| Bearing Configuration | Dual sealed ball bearings (pre-installed) |
Part References
| Current Part Number | RA 632-016-001-A |
| Direct Replacement For | RA 632-016-001 (base version) |
| Alternative Part Numbers | RA 632-016-001-SP (special variant); RA632-016-01Y-MIL (military-spec, verify compatibility separately) |
Frequently Asked Questions
Q: What does the RA 632-016-001-A load wheel assembly include?
A: The RA 632-016-001-A is a complete load wheel assembly for load-side undercarriage service. It includes a 3.25 inch diameter Durarun 95A polyurethane wheel bonded to a cast iron hub, plus two sealed ball bearings pre-installed. The assembly is ready to mount; no additional bearing installation is required.
Q: Which Raymond 101 Series pallet truck models accept the RA 632-016-001-A?
A: The RA 632-016-001-A is designed as a direct replacement for Raymond 101 Series electric lift trucks. It fits the load-side undercarriage position. Verify your truck serial number range falls within the 101 Series compatibility window. If your truck is a different Raymond series, verify bore size and bearing type match before ordering.
Q: What is the wheel diameter, width, and hub bore of the RA 632-016-001-A?
A: The RA 632-016-001-A wheel measures 5 inches in tread width and 3.25 inches in outside diameter. The hub bore is 2.047 inches. The polyurethane is Durarun 95A durometer, bonded to cast iron. Bearings are sealed ball type. These dimensions are critical for fitment; measure your existing wheel before ordering.
Q: Are there cross-reference or special versions of the RA 632-016-001-A?
A: The RA 632-016-001-A cross-references to OEM part number RA 632-016-001 (base wheel only) and RA 632-016-001-SP (special variant wheel). A military-spec version RA632-016-01Y-MIL exists but is not a direct replacement; compatibility must be verified separately. For non-standard requirements, contact our parts team with your equipment specifications.
Q: How long does the RA 632-016-001-A assembly typically last in normal operation?
A: Under normal warehouse conditions with standard load duty, the assembly typically provides 2-4 years of service life. Sealed bearings reduce maintenance and extend life compared to open bearing designs. Lifespan is affected by load weight, floor condition, and operating hours. Periodically inspect for flat spots, cracks in the wheel, or bearing noise.
Q: Can the RA 632-016-001-A be used as a drop-in replacement on used or rebuilt trucks?
A: Yes, the RA 632-016-001-A is designed as a direct replacement assembly. However, inspect the axle for wear, bent condition, or corrosion before installation. If the axle is damaged, the new assembly will not track straight. Verify that the axle bore diameter and length match the assembly specifications before use.
