Product Description

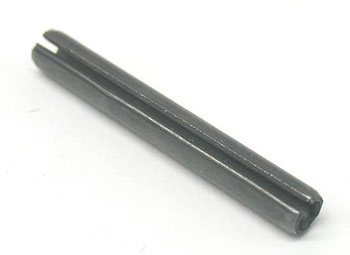

The Raymond RA 811-145 roll pin is a direct replacement part for the Raymond 101 electric pallet truck frame and undercarriage assembly. This hardened spring steel pin secures mechanical components and prevents movement under high-shear load conditions during operation. Engineered for reliable performance in demanding warehouse environments, it ensures critical undercarriage retention throughout the equipment lifecycle.
Specifications
Product Overview
| Part Number | RA 811-145 |
| Manufacturer Part Number | Raymond 811-145 |
Physical Specifications
| Equivalent Part Numbers | 811-145, RA811-145 |
| Material | Hardened spring steel |
Compatibility
| Application | Frame and undercarriage assembly retention under high-shear load conditions |
| Compatible Equipment | Raymond 101 electric pallet truck frame and undercarriage assemblies |
Frequently Asked Questions
Q: What is the RA 811-145 roll pin used for?
A: The RA 811-145 is a direct replacement roll pin designed for Raymond 101 frame and undercarriage assemblies. It secures mechanical components under high-shear load conditions in electric pallet trucks, maintaining secure retention of critical undercarriage parts during operation.
Q: What material is the RA 811-145 roll pin made from?
A: The RA 811-145 is manufactured from hardened spring steel. This material composition provides the strength and resilience necessary to withstand high-shear loading without permanent deformation, making it suitable for demanding undercarriage applications on Raymond electric pallet trucks.
Q: Which Raymond models does the RA 811-145 fit?
A: The RA 811-145 roll pin is compatible with Raymond 101 frame and undercarriage assemblies. Verify that your equipment uses the 101 frame configuration before ordering. Cross-reference part numbers include 811-145 and RA811-145.
Q: When should the RA 811-145 roll pin be replaced?
A: Replacement is necessary if you observe loose mechanical components in the 101 frame assembly or if the pin shows visible damage, bending, or corrosion. Regular inspection of undercarriage retention points is recommended for early detection of wear or failure.
Q: What are the equivalent part numbers for the RA 811-145?
A: The RA 811-145 is referenced under manufacturer part number Raymond 811-145. Equivalent cross-reference numbers include 811-145 and RA811-145. Use these exact references when ordering to ensure correct fitment on Raymond 101 frame assemblies.
