Raymond solenoid replacement for Raymond 101 series and 4000 series
RA 560-209-09
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

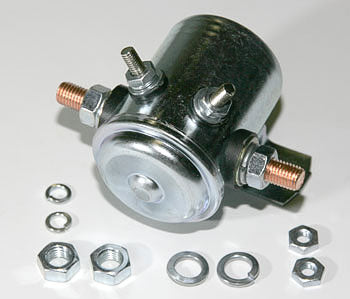

Raymond RA 560-209-09 24VDC solenoid is a direct replacement component for Raymond 101 Series electric pallet trucks. This electromagnetic valve controls power delivery to the hydraulic pump motor system, enabling reliable lift and tilt function. Designed as a direct fit for the pump motor assembly, providing continuous duty operation in demanding warehouse environments.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 101, 4000 |
| Part Number | RA 560-209-09 |
| Compatible Equipment | Raymond 101 Series Electric Pallet Trucks |
| Application | Pump Motor Assembly |
Electrical Specifications
| Nominal Voltage | 24VDC |
Performance Specifications
| Duty Cycle | Continuous |
Additional Specifications
| Description | Direct replacement solenoid for Raymond 101 Series electric pallet trucks, electromagnetic valve controlling pump motor power delivery |
Frequently Asked Questions
Q: What equipment does the RA 560-209-09 fit?
A: The RA 560-209-09 is a replacement solenoid for Raymond 101 series electric lift trucks. It is designed as a direct fit for the pump and motor assembly on these units.
Q: What is the voltage rating for the RA 560-209-09?
A: The RA 560-209-09 is rated at 24vdc continuous duty. It is designed to handle continuous operation in the hydraulic pump circuit of Raymond 101 series lift trucks.
Q: What failure symptoms indicate that the RA 560-209-09 needs replacement?
A: Symptoms of solenoid failure include loss of pump engagement, no hydraulic lift response when controls are activated, or intermittent pump operation. A failed solenoid prevents the pump motor from energizing the hydraulic circuit.
Q: What makes and models is the RA 560-209-09 compatible with?
A: The RA 560-209-09 is compatible with Raymond 101 series and 4000 series electric lift trucks. Verify that your truck is one of these models before ordering.
Q: How does the RA 560-209-09 function in the hydraulic system?
A: The solenoid acts as an electromagnetic valve that controls power delivery to the hydraulic pump motor. When energized by the control circuit, it engages the pump, allowing hydraulic pressure to build for lift and tilt functions.
Q: Is the RA 560-209-09 a direct replacement for failed solenoids?
A: Yes, the RA 560-209-09 is a replacement part that mounts directly to the pump and motor assembly. It replaces the original solenoid without modification.
