Product Description

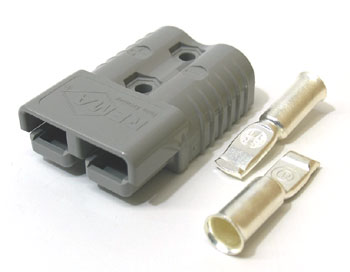

SB175 series 175A gray battery connector engineered for Raymond 102XM electric lift trucks. Features high-impact polycarbonate housing, tin-plated copper contacts, 600VDC maximum voltage rating, and 1/0 AWG wire compatibility. Direct replacement for superseded part numbers 590-701/02 and 1142613/001. Designed for reliable power distribution in electric pallet jack battery applications.
Specifications
Electrical
| Rated Current | 175A continuous |
| Voltage Rating | 600VDC maximum |
| Housing Material | High-impact polycarbonate |
| Contact Material | Tin-plated copper |
| Wire Compatibility | 1/0 AWG |
Part Numbers
| Part Number | RA 590-701 |
| Cross-Reference Part Numbers | 590-701/02, 1142613/001 |
| Connector Series | SB175 |
| Compatible Equipment | Raymond 102XM Walkie Pallet Truck |
Frequently Asked Questions
Q: What is the rated current capacity of the RA 590-701 battery connector?
A: The RA 590-701 is rated for 175A continuous current. Do not exceed this rating in applications, as oversized current will cause overheating and damage to the tin-plated copper contacts.
Q: What is the maximum voltage rating for the RA 590-701?
A: The RA 590-701 has a 600VDC maximum voltage rating. This SB175 series connector is engineered for high-voltage battery applications in Raymond 102XM equipment.
Q: Which Raymond models does the RA 590-701 fit?
A: The RA 590-701 is designed for Raymond 102XM Walkie Pallet Truck models. This connector serves as a direct replacement for battery connections on this equipment.
Q: What materials are used in the RA 590-701 construction?
A: The housing is constructed from high-impact polycarbonate, and the contacts are tin-plated copper. Polycarbonate provides electrical insulation and impact resistance, while tin-plated copper delivers superior conductivity and corrosion resistance.
Q: What wire gauge is the RA 590-701 rated for?
A: The RA 590-701 accommodates 1/0 AWG wire. Improper wire gauge fitment can create safety hazards and connector failure.
Q: What are the cross-reference and supersession numbers for the RA 590-701?
A: This connector supersedes 590-701/02 and 1142613/001. If your equipment calls for either of these older part numbers, the RA 590-701 is the current direct replacement.
Q: What is the SB175 connector series?
A: The SB175 is a 175-amp battery connector series used in electric lift truck applications. Gray connectors in this series are designed for standard battery connections in Raymond and compatible equipment.
Q: What are the key specifications to verify before ordering the RA 590-701?
A: Verify that your equipment is a Raymond 102XM model, confirm wire gauge is 1/0 AWG, and ensure your battery system operates at or below 600VDC and 175A continuous. Cross-check against superseded part numbers 590-701/02 and 1142613/001.
