Product Description

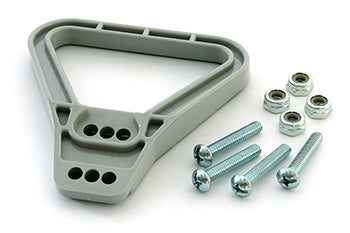

Disconnect handle assembly for Raymond 102XM electric pallet truck, OEM part number RA 939-353-104. Designed for mechanical control handle actuation and includes installation hardware (screws and nuts). Compatible with specified Raymond models. Engineered from polymer composite and structural steel for durability; mounting hardware conforms to SAE standards.
Compatibility: Fits pallet jacks made by Raymond, model 102XM Walkie Pallet Truck. SKU: RA 939-353-104
Specifications
Dimensional Specifications
| Mounting Hole Thread | 1/4-20 UNC thread type |
Material & Construction
| Handle Material | Polymer composite with structural steel insert |
| Hardware Material | Grade 8 steel screws and nuts per SAE J429 |
Mechanical Specifications
| Operating Duty Cycle | Continuous mechanical actuation |
| Actuation Method | Manual pull or push, compatible with Raymond 102XM handle assembly |
Part Numbers & Compatibility
| OEM Part Number | RA 939-353-104 |
| Cross-Reference Part Numbers | RA939-353-104, RA939353104, 939353104 |
| Compatible Models | Raymond 102XM Walkie Pallet Truck |
Frequently Asked Questions
Q: What is the RA 939-353-104 disconnect handle assembly?
A: This is a mechanical control handle assembly designed for Raymond 102XM electric pallet trucks. It enables operator actuation of the disconnect function and includes mounting hardware.
Q: What equipment does this handle assembly fit?
A: The RA 939-353-104 is engineered for Raymond 102XM Walkie electric pallet trucks. Verify your truck model and serial range match before ordering to ensure fitment.
Q: What materials is this handle assembly made from?
A: The handle is constructed from polymer composite with a structural steel insert, providing durability and ergonomic grip characteristics. Mounting hardware consists of Grade 8 steel screws and nuts conforming to SAE J429 standards.
Q: What hardware is included with this assembly?
A: Installation hardware includes SAE Grade 8 steel screws and nuts sized for the mounting hole pattern. Verify thread size and hole diameter match your truck assembly before ordering.
Q: What are the cross-reference numbers for this handle assembly?
A: Cross-reference part numbers include RA 939-353-104, RA939-353-104, RA939353104, and 939353104. Use these when searching OEM catalogs or verifying compatibility.
Q: How durable is this handle assembly in normal warehouse use?
A: The polymer composite construction provides good durability for standard warehouse operations. Expected service life is 4-6 years with routine use; higher duty cycles or rough handling may shorten lifespan.
