Product Description

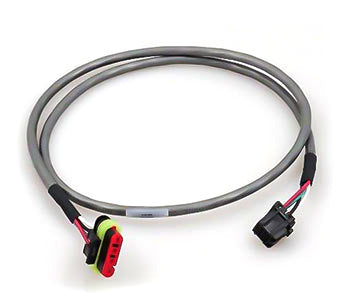

The RA 939-353-134 Head Harness is a direct replacement electrical harness for the Raymond 102XM Walkie Pallet Truck. As an integral component of the handle assembly, it routes control signals within the operator interface for reliable equipment communication. Features factory-spec copper conductors and multi-pin connectors for dependable control circuit connection. Cross-references include BT 313436-00, PM 313436-00, PM 313436-000, RA 313436-00, TY 00590-43482-71, and TY 939-353-134.
Specifications
Electrical
| Voltage Compatibility | 24VDC control circuits |
| Conductor Material | Factory-spec copper |
| Connector Type | Multi-pin connectors |
Part Numbers
| Manufacturer Part Number | RA 939-353-134 |
| Cross-Reference Part Numbers | BT 313436-00, PM 313436-00, PM 313436-000, RA 313436-00, TY 00590-43482-71, TY 939-353-134 |
| Equivalent Part Numbers | 370325 |
| Compatible Equipment | Raymond 102XM Walkie Pallet Truck |
| Application | Handle assembly control signal routing |
Frequently Asked Questions
Q: What is the RA 939-353-134 Head Harness and what does it do?
A: The RA 939-353-134 is an OEM-grade electrical harness for the Raymond 102XM Walkie Pallet Truck. It is an integral component of the handle assembly that routes control signals within the trucks operator interface, enabling communication between the control system and the lift mechanism.
Q: What cross-reference part numbers are equivalent to the RA 939-353-134?
A: The RA 939-353-134 has multiple cross-reference numbers including BT 313436-00, PM 313436-00, PM 313436-000, RA 313436-00, TY 00590-43482-71, and TY 939-353-134. These part numbers may appear in technical documentation or previous invoices for the same harness.
Q: What material and connector specifications does the RA 939-353-134 use?
A: The RA 939-353-134 features OEM-grade copper conductors with multi-pin connectors designed for reliable control circuit connection. The copper construction ensures low electrical resistance and the multi-pin design provides secure connections for all control signals routed through the handle assembly.
Q: Will the RA 939-353-134 fit pallet jacks from other manufacturers?
A: The RA 939-353-134 is specifically designed for the Raymond 102XM Walkie Pallet Truck. Do not use this harness on equipment from other manufacturers as the connector pinouts and handle assembly routing are proprietary to the Raymond 102XM model.
