Product Description

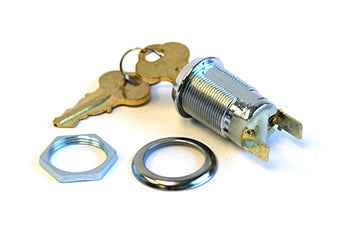

Raymond OEM key switch, part number RA 851-200-055, is an operator-actuated ignition switch designed for use in Raymond electric lift truck models, specifically the 102XM Walkie series. The switch assembly includes 2 nickel-plated steel keys, supports panel-mounted installation, and is engineered for DC circuit on/off control typical of pallet jack applications. Cross-reference information for this SKU is currently not available.
Compatibility: Fits pallet jacks made by Raymond, model 102XM Walkie Pallet Truck. SKU: RA 851-200-055
Specifications
Dimensional
| Key Insertion Position | 90° key rotation for actuation |
Part Numbers
| OEM Part Number | RA 851-200-055 |
| Description | Key Switch, Inc. 2 Keys |
| Compatible Equipment Model | Raymond 102XM Walkie |
Frequently Asked Questions
Q: What equipment model is the RA 851-200-055 key switch designed for?
A: The RA 851-200-055 is a Raymond OEM key switch designed for the Raymond 102XM Walkie electric lift truck series. This switch is operator-actuated and controls the main power circuit for vehicle start and stop functions.
Q: What are the specifications of the RA 851-200-055 key switch?
A: The RA 851-200-055 is a panel-mounted ignition switch with a 90-degree key rotation actuation. It includes two nickel-plated steel keys and is engineered for DC circuit on/off control typical of electric pallet jack and lift truck applications.
Q: How does the key rotation actuation work on the RA 851-200-055?
A: The RA 851-200-055 uses a 90-degree key rotation to actuate the switch mechanism. Insert the nickel-plated steel key and rotate 90 degrees to engage or disengage the DC power circuit. The switch returns to neutral position when key is removed.
Q: What are common failure symptoms of the RA 851-200-055 key switch?
A: Signs of switch failure include difficulty turning the key, intermittent power loss, stuck key that does not rotate smoothly, or loss of electrical continuity. Corroded internal contacts or worn tumblers cause these symptoms. Replace the switch immediately if failure occurs.
Q: Is the RA 851-200-055 compatible with other Raymond lift truck models besides the 102XM Walkie?
A: The RA 851-200-055 is specified for the Raymond 102XM Walkie series. Do not use on other truck models unless verified as compatible through the OEM parts cross-reference. Panel-mount configuration and electrical specifications must match your equipment.
Q: What is the typical lifespan of the RA 851-200-055 key switch?
A: Under normal operating conditions, key switches typically function reliably for 3 to 5 years. Service life depends on frequency of key insertion and rotation cycles. Heavy use or poor maintenance accelerates wear of internal contacts and tumblers.
