Lift Limit Switch for Raymond 102XM
RA 939-353-267
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

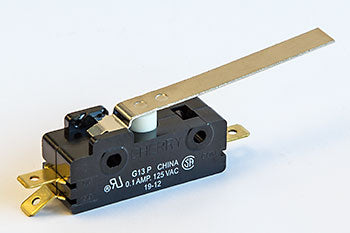

OEM Lift Limit Switch RA 939-353-267 for Raymond electric lift trucks, cross-compatible with BT 20208-01, PM 20208-01, and equivalent units. Designed for panel or bracket mount, spring-loaded plunger actuator, and compatible with control circuits typically at 24VDC. Fits Raymond 102XM Walkie models.
Compatibility: Fits pallet jacks made by Raymond, model 102XM Walkie Pallet Truck. SKU: RA 939-353-267
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 102XM |
| Part Number | RA 939-353-267 |
| Cross-Reference Part Numbers | BT 20208-01, PM 20208-01, RA 20208-01, BT 308030-000, KO 308030-000, PM 308030-000, AC 308030-000 |
| Equivalent Part Numbers | RA 939-353-033 |
| Compatible Equipment | Raymond 102XM Walkie |
| Cross Reference Part Numbers | BT 20208-01, PM 20208-01, RA 20208-01, BT 308030-000, KO 308030-000, PM 308030-000, AC 308030-000 |
| Fits Models | Raymond 102XM Walkie Pallet Truck |
Electrical Specifications
| Control Circuit Voltage | 24VDC |
Additional Specifications
| Description | OEM Lift Limit Switch RA 939-353-267 for Raymond electric lift trucks, cross-compatible with BT 20208-01, PM 20208-01, and equivalent units. Designed for panel or bracket mount, spring-loaded plunger actuator, and compatible with control circuits typically at 24VDC. Fits Raymond 102XM Walkie models. |
| Mounting Type | Panel or Bracket Mount |
| Actuator Type | Spring-Loaded Plunger |
Frequently Asked Questions
Q: What is RA 939-353-267 and what does it do?
A: The RA 939-353-267 is a lift limit switch designed for Raymond electric lift trucks. This switch is a safety component that controls the upper lift height limit of the truck. It features a spring-loaded plunger actuator and is designed for panel or bracket mount installation on the truck control circuits.
Q: What equipment is RA 939-353-267 compatible with?
A: The RA 939-353-267 is compatible with Raymond 102XM Walkie Pallet Truck models. Verify your lift truck model designation matches 102XM Walkie before ordering, as limit switches are model-specific and not universally interchangeable across all Raymond pallet trucks.
Q: What are the cross-reference part numbers for RA 939-353-267?
A: The RA 939-353-267 has multiple cross-reference part numbers: BT 20208-01, PM 20208-01, RA 20208-01, BT 308030-000, KO 308030-000, PM 308030-000, and AC 308030-000. The equivalent Raymond part number is RA 939-353-033.
Q: What voltage does RA 939-353-267 operate at?
A: The RA 939-353-267 is designed for 24VDC control circuits, which is standard for Raymond electric lift truck applications. Verify your equipment control voltage matches before ordering to ensure compatibility with your lift truck electrical system.
Q: What is the function of the spring-loaded plunger actuator?
A: The spring-loaded plunger actuator contacts the truck's lift mechanism at maximum height, triggering the switch to cut power to the lift motor. This prevents over-lifting and protects the lift mechanism and load from damage. The spring-loaded design ensures positive engagement and consistent switch activation at the configured height limit.
Q: How do I know if RA 939-353-267 is the right replacement part for my lift truck?
A: To ensure compatibility, verify your lift truck model matches Raymond 102XM Walkie Pallet Truck. Check the part number on your existing switch or consult your equipment's documentation for confirmation.
