Product Description

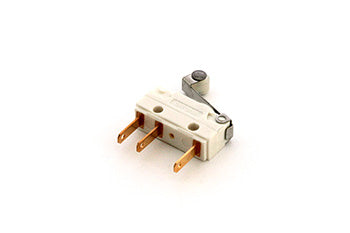

Raymond OEM Switch (RA 939-353-033), compatible with 102XM Walkie Electric Pallet Trucks. Includes all manufacturer part numbers and key cross-references. Designed for integration in tiller control handle circuits for main or auxiliary electrical switching functions.
Compatibility: Fits pallet jacks made by Raymond, model 102XM Walkie Pallet Truck. SKU: RA 939-353-033
Specifications
Compatibility
| Compatible Equipment Models | Raymond 102XM Walkie Electric Pallet Truck |
Electrical
| Electrical Category | Low-voltage control circuit use |
Part Numbers
| OEM Part Number | RA 939-353-033 |
| Cross-Reference Part Numbers | RA 939-353/033, TY 00590-43472-71, TY 00590-43475-71, 360038-274 |
| Equivalent Part Numbers | 360038-274 |
Frequently Asked Questions
Q: What does the RA 939-353-033 OEM switch do on a Raymond 102XM?
A: The RA 939-353-033 is a low-voltage control circuit switch designed for the tiller handle of Raymond 102XM walkie electric pallet trucks. It routes electrical signals for main lift motor control, auxiliary function control, or circuit protection functions based on operator input.
Q: What is the electrical specification of the RA 939-353-033 switch?
A: This is a 24 VDC low-voltage control circuit switch rated for signal-level current. It is designed for integration into the tiller control handle circuit and is not suitable for high-current motor control applications.
Q: Are there cross-reference or equivalent part numbers for RA 939-353-033?
A: Yes. Cross-reference designations include RA 939-353/033 (alternate notation), TY 00590-43472-71, TY 00590-43475-71, and equivalent part number 360038-274. These are OEM interchangeable designations for the same component.
Q: What is the difference between the RA 939-353/033 and RA 939-353-033 notation?
A: Both notations refer to the same OEM part. The forward slash and hyphen are alternative formatting conventions used across Raymond documentation and supplier systems. Confirm SKU RA 939-353-033 when ordering to ensure correct part.
Q: Can the RA 939-353-033 be used on Raymond models other than 102XM?
A: This switch is designed for 102XM walkie pallet truck tiller circuits. Do not assume compatibility with other Raymond models without confirming voltage, connector type, and circuit integration match. Consult equipment documentation or contact us with your model and serial number.
Q: How long does the RA 939-353-033 switch last before failure?
A: Switch lifespan depends on operation frequency and electrical load. Most low-voltage control switches last the life of the equipment if operating conditions remain nominal. Replace immediately if the switch fails to register operator input, causes intermittent control, or arcs internally.
