Product Description

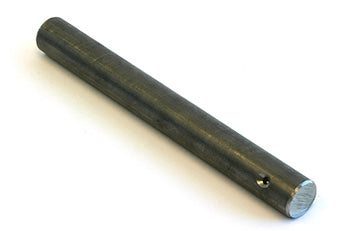

Raymond OEM Pivot Pin (part number RA 939-353-051) for 102XM Walkie Series electric pallet trucks, constructed from case-hardened alloy steel for precise frame and wheel fork articulation. Designed for high-load pivot applications in undercarriage assemblies.
Compatibility: Fits pallet jacks made by Raymond, model 102XM Walkie Pallet Truck. SKU: RA 939-353-051
Specifications
Material & Construction
| Component Material | Alloy steel for load-bearing application |
Part Numbers
| OEM Part Number | RA 939-353-051 |
| Manufacturer Part Number | RA 939-353-051 |
| Compatible Models | Raymond 102XM Walkie Series Electric Pallet Trucks |
Frequently Asked Questions
Q: What is the function of the RA 939-353-051 pivot pin?
A: The RA 939-353-051 is an OEM pivot pin designed for the Raymond 102XM Walkie Series electric pallet trucks. It provides the articulation point for precise frame and wheel fork movement during load handling operations.
Q: What material and construction type is this pivot pin?
A: The RA 939-353-051 is constructed from case-hardened alloy steel. This material is engineered for high-load pivot applications where shear stress and directional forces are significant.
Q: Which Raymond equipment is this pivot pin compatible with?
A: The RA 939-353-051 is designed for Raymond 102XM Walkie Series electric pallet trucks. Verify your truck model before ordering to ensure proper fitment in the undercarriage assembly.
Q: Where is this pivot pin located in the truck assembly?
A: The RA 939-353-051 is part of the undercarriage assembly and connects the frame to the wheel fork mechanism, allowing controlled articulation and steering response during pallet handling.
