Product Description

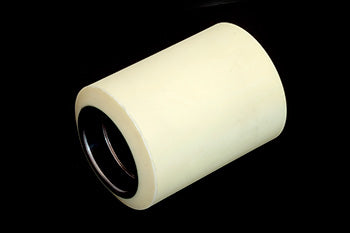

Load wheel for Raymond 102XM electric walkie pallet jack featuring XL 97A durometer polyurethane construction. Dimensional specifications include 4.50 inch outer diameter, 3.25 inch tread width, 2.047 inch hub bore, and 0.984 inch bearing bore. Equipped with BS 6205 2RS sealed ball bearings for enhanced durability and extended wheel life in demanding warehouse and dock applications.
Specifications
Material & Construction
| Material Type | Polyurethane |
| Hardness (Shore A) | 97A XL |
| Bearing Type | BS 6205 2RS sealed ball bearings |
Dimensions
| Outer Diameter | 4.50 inch |
| Tread Width | 3.25 inch |
| Hub Bore | 2.047 inch |
| Bearing Bore | 0.984 inch |
Part Numbers & Compatibility
| Manufacturer Part Number | RA 939-353-047-XL |
| Cross-Reference Part Numbers | RA939-353-047-XL, RA939353047XL, 939353047XL |
| Assembly Version | RA 939-353-047-XL-A |
| Supersedes | RA 939-353-047 (95A poly version) |
| Compatible Equipment | Raymond 102XM Walkie Pallet Truck |
Frequently Asked Questions
Q: What are the dimensional specifications for the RA 939-353-047-XL load wheel?
A: The RA 939-353-047-XL features a 4.50 inch outer diameter, 3.25 inch tread width, 2.047 inch hub bore, and 0.984 inch bearing bore. These dimensions ensure compatibility with Raymond 102XM electric walkie pallet jacks.
Q: What is the durometer rating and material composition of this load wheel?
A: This load wheel features XL 97A durometer polyurethane construction. The 97A rating provides enhanced wear resistance and durability compared to the earlier 95A version (RA 939-353-047).
Q: Which bearing type does the RA 939-353-047-XL include?
A: The RA 939-353-047-XL is equipped with BS 6205 2RS sealed ball bearings. The 2RS designation indicates sealed bearings on both sides, providing protection against contaminants and extending bearing life.
Q: What equipment models does this load wheel fit?
A: This load wheel is designed for Raymond 102XM Walkie Pallet Truck models. Verify your equipment model number before ordering to ensure proper fitment.
Q: Are there cross-reference part numbers for the RA 939-353-047-XL?
A: Yes. Cross-reference numbers include RA939-353-047-XL, RA939353047XL, and 939353047XL. The assembly version is listed as RA 939-353-047-XL-A. This part supersedes the earlier RA 939-353-047 (95A poly version).
Q: How does the XL durometer version compare to the standard version?
A: The XL 97A version provides improved durability and wear resistance compared to the standard 95A durometer (RA 939-353-047). The harder compound reduces deformation under load, extending wheel life in high-use applications.
