Product Description

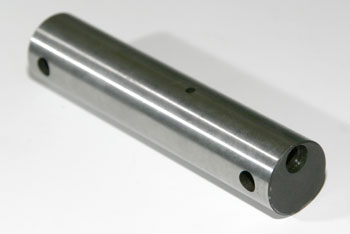

Raymond RA 1014758-001 Load Wheel Axle for 2.88 inch wide open toe load wheels. Compatible with Raymond 7400, 7420, and 7440 electric reach truck series. Designed for use with 5 inch diameter load wheels and 6205 bearings. Constructed of high strength alloy steel and engineered for continuous duty in electric lift truck applications.
Compatibility: Fits pallet jacks made by Raymond, model 7400 Reach Truck 5 inch x 3.62 inch Wheels Open Toe. Alternate model: 7400 Reach Truck 5 inch x 3.62 inch Wheel Open Toe. SKU: RA 1014758-001
Specifications
Dimensional Specifications
| Axle Width | 2.88 inches |
| Load Wheel Diameter | 5 inches |
| Load Wheel Width | 3.62 inches |
| Mounting Bolt Specification | Shoulder bolt RA 5-005-017 |
Material & Construction
| Construction Material | High-strength alloy steel |
| Bearing Type | 6205 deep-groove ball bearing |
| Load Wheel Configuration | Open-toe |
Application
| Compatible Equipment | Raymond 7400, 7420, 7440 reach truck series |
| Duty Rating | Continuous duty electric lift truck applications |
| Part Number | RA 1014758-001 |
Frequently Asked Questions
Q: What equipment does the RA 1014758-001 load wheel axle fit?
A: The RA 1014758-001 is a load wheel axle for Raymond 7400, 7420, and 7440 reach truck series. It accommodates 5 inch diameter by 3.62 inch wide open-toe load wheels and uses 6205 bearing size. Verify your reach truck model number before ordering.
Q: What are the material specifications for this load wheel axle?
A: The RA 1014758-001 is constructed from high-strength alloy steel engineered for continuous duty in electric reach truck applications. This material provides superior strength-to-weight ratio and fatigue resistance under repeated loading cycles typical of warehouse operations.
Q: What is the axle width and bearing specification for compatibility?
A: The axle width is 2.88 inches, designed for open-toe load wheels 5 inches in diameter and 3.62 inches wide. It uses 6205 bearing size on each end. The axle mounts using OEM shoulder bolt RA 5-005-017. Verify bearing condition when replacing an axle.
Q: How does the RA 1014758-001 compare to RA 1014758-002?
A: Both RA 1014758-001 and RA 1014758-002 are load wheel axles for Raymond reach trucks with open-toe configuration. RA 1014758-001 is the standard production axle. Refer to your reach truck model documentation to confirm which axle variant your equipment requires.
Q: What lifespan can you expect from this load wheel axle?
A: Load wheel axle lifespan is typically 5 to 10 years depending on load cycles, warehouse floor conditions, and bearing maintenance. High-use operations may see wear sooner. Inspect for play, noise, or wobble quarterly. Bearing replacement extends axle service life.
Q: What bearing type and size is required for this axle?
A: The RA 1014758-001 uses 6205 deep-groove ball bearings, one on each end. When replacing wheel axles, verify bearing condition. Deep-groove 6205 bearings are industry standard for 5 inch load wheels in reach truck applications. Sealed bearing models reduce maintenance.
