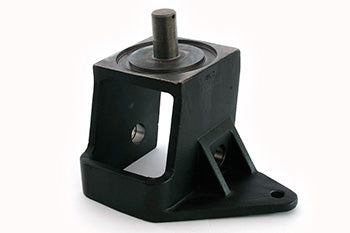

Caster Housing for Raymond 7400, 7420, 7440, 7500, 7520, 7700, 7720, EZ, ES, ET, EF, DZ
RA 828-006-696
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Raymond direct replacement caster housing for 7400 Series electric reach trucks. This heavy-duty steel component supports steered idler wheel functions and delivers reliable load transfer through the undercarriage assembly. Engineered to factory specifications with cross-reference number 1363423/001, this housing ensures proper steering response and load stability on Raymond reach truck models.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 7400, 7420, 7440, 7500, 7520, 7700, 7720, EZ, ES, ET, EF, DZ, DS, DT |
| Part Number | 828-006-696 |
| Alternate Part Number | 1363423/001 |
| Compatibility | Fits pallet jacks made by Raymond, model 7400 Reach Truck Idler Wheel Assembly. |
Additional Specifications
| Description | Raymond OEM caster housing, part number 828-006-696, engineered for 7400 Series electric lift trucks. Heavy-duty steel housing supports steered idler wheel functions and replaces alternate number 1363423/001. Verified direct Raymond replacement component, suitable for factory undercarriage installation. |
| Alternate Model | 7400 Reach Truck Idler Wheel Assembly. |
| SKU | RA 828-006-696 |
Frequently Asked Questions
Q: What equipment is compatible with the RA 828-006-696?
A: The RA 828-006-696 is compatible with Raymond 7400, 7420, 7440, 7500, 7520, 7700, 7720, EZ, ES, ET, EF, DZ, DS, and DT models.
Q: What material is the RA 828-006-696 made from?
A: The RA 828-006-696 is constructed from heavy-duty steel, dESigned to provide long-term durability in industrial environments.
Q: What is the function of the RA 828-006-696?
A: The RA 828-006-696 mounts the steered idler wheel assembly and transfers load from the mast and battery compartment to the floor through the wheel. It must remain rigid and free of cracks to maintain proper steering rESponse and load stability.
Q: What is the cross-rEFerence part number for RA 828-006-696?
A: The cross-rEFerence part number for RA 828-006-696 is 1363423/001. This number may appear in Raymond parts diagrams and documentation.
Q: How do I know if the RA 828-006-696 is suitable for my equipment?
A: Verify your specific equipment serial range to confirm compatibility with the RA 828-006-696. It is dESigned for use on the listed Raymond models.
