Steering Link Assembly for Raymond Reach Truck
RA 1009403
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

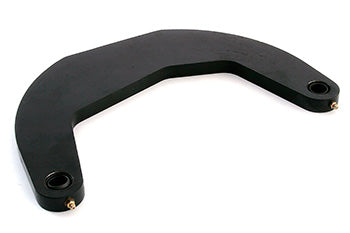

Raymond RA 1009403 Steering Link Assembly (Drive Side) with pre-installed spherical roller bearing. OEM fit for Raymond 7400-series Electric Reach Trucks. Machined steel construction with OEM-grade bearing; direct factory replacement—includes specified mounting hardware and lubrication fitting.
Compatibility: Fits pallet jacks made by Raymond, model 7400 Reach Truck Steering Linkage. SKU: RA 1009403
Specifications
Material & Construction
| Construction | Machined steel body |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 7400, 7420, 7440 |
| Part Number | RA 1009403 |
| Manufacturer Part Number | 1009403 |
| Compatibility | Fits pallet jacks made by Raymond, model 7400 Reach Truck Steering Linkage. |
Additional Specifications
| Bearing Material | Hardened steel raceways with precision-machined rolling elements |
| Description | Raymond RA 1009403 Steering Link Assembly (Drive Side) with pre-installed spherical roller bearing. OEM fit for Raymond 7400-series Electric Reach Trucks. Machined steel construction with OEM-grade bearing; direct factory replacement—includes specified mounting hardware and lubrication fitting. |
Frequently Asked Questions
Q: Which Raymond models is this part compatible with?
A: The RA 1009403 is designed for Raymond 7400, 7420, and 7440 series electric reach trucks. Verify your truck model before ordering to ensure compatibility.
Q: What materials is the RA 1009403 made from?
A: The RA 1009403 features machined steel body construction with hardened steel bearing raceways and precision-machined rolling elements. This design is intended for the steering loads of Raymond 7400-series reach trucks.
Q: Does the RA 1009403 include all necessary components for replacement?
A: Yes. The RA 1009403 includes specified mounting hardware and a lubrication fitting for bearing maintenance. No additional components are required for direct factory replacement fitment.
Q: What is the function of the RA 1009403?
A: The RA 1009403 is a drive side steering link assembly that connects to the drive wheels. It plays an essential role in the steering functionality of Raymond 7400-series electric reach trucks.
