Product Description

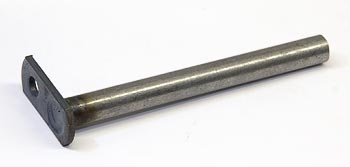

The RA 671-012-17 is a precision hinge pin designed as a direct replacement for Raymond electric pallet truck caster and wheel mounting assemblies. Manufactured from medium carbon steel with surface hardening, this pin provides reliable pivot support for the 8300, 8400, and 8500 series equipment. Built for durability in cyclic material handling operations, the RA 671-012-17 maintains proper rotation geometry and load distribution for smooth steering and stable operation. A critical component for maintaining caster assembly integrity and vehicle control.
Specifications
Dimensional Specifications
| Application Orientation | Horizontal or vertical axis in caster/wheel mounting, dependent on Raymond 8300/8400/8500 design |
Material & Construction
| Material | Medium carbon steel, surface hardened |
| Finish/Coating | Plain (as supplied, without plated finish) |
Part Information
| Part Number | RA 671-012-17 |
| Compatible Models | Raymond 8300, 8400, 8500 electric pallet truck series |
Performance Specifications
| Service Factor | Suitable for cyclic wheel pivot functions in material handling vehicle applications; actual load determined by host assembly |
Frequently Asked Questions
Q: What is the RA 671-012-17 and what is its function?
A: The RA 671-012-17 is a hinge pin designed for wheel and caster mounting applications on Raymond electric pallet trucks. It serves as a pivot point for caster and wheel assemblies, maintaining proper rotation geometry while bearing load and directional forces.
Q: Which Raymond equipment is the RA 671-012-17 compatible with?
A: The RA 671-012-17 is designed for Raymond 8300, 8400, and 8500 series electric pallet trucks as a direct replacement component for wheel and caster mounting applications.
Q: What material is the RA 671-012-17 hinge pin made from?
A: The RA 671-012-17 is manufactured from medium carbon steel with a surface-hardened finish. This material composition provides the strength necessary to handle repetitive load cycling in caster pivot applications while resisting wear at the contact surfaces.
Q: What are the signs that the RA 671-012-17 hinge pin needs replacement?
A: Replace the RA 671-012-17 if you observe excessive play or loose caster movement, squeaking or grinding noise from the caster assembly, wear marks or scoring on the pin surface, or if the caster does not pivot smoothly. A worn hinge pin compromises steering control and load stability.
Q: Are there equivalent part numbers for the RA 671-012-17?
A: No cross-reference part numbers have been identified for the RA 671-012-17. Order this part number directly to ensure correct fitment and maintain the design specifications of your Raymond 8300, 8400, or 8500 caster assembly.
Q: How should the RA 671-012-17 be stored?
A: Store the RA 671-012-17 in a dry environment protected from moisture and corrosion. Keep the part in its original packaging or a sealed container to prevent rust and contamination of the surface-hardened finish.
