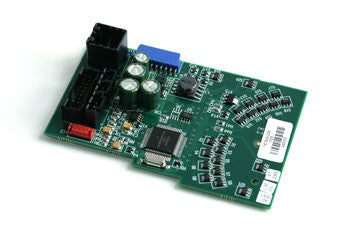

Control Card Assembly for Raymond Electric Pallet Jacks
RA 1036737
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
OEM Control Card Assembly RA 1036737 for Raymond electric pallet trucks, provides electronic logic and drive/hydraulic control, direct fit for Raymond 8300 series; factory engineered for precise integration with Raymond material handling equipment.
Compatibility: Fits pallet jacks made by Raymond, model 8300, 8400, 8500. SKU: RA 1036737
Specifications
Material & Construction
| Construction | Multi-layer PCB, surface mount and through-hole components |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 8300, 8400, 8500 |
| Part Number | RA 1036737 |
| Manufacturer Part Number | RA 1036737 |
| Compatible Equipment Models | Raymond 8300 Series |
Additional Specifications
| Mounting Pattern | Designed for direct installation in Raymond 8300 control handle |
| Description | OEM Control Card Assembly RA 1036737 for Raymond electric pallet trucks, provides electronic logic and drive/hydraulic control, direct fit for Raymond 8300 series; factory engineered for precise integration with Raymond material handling equipment. |
Frequently Asked Questions
Q: What equipment does the RA 1036737 control card fit?
A: The RA 1036737 is a replacement control card assembly for Raymond electric pallet trucks in the 8300, 8400, and 8500 series. It provides electronic logic and drive/hydraulic control.
Q: What is the construction type of this control card?
A: The RA 1036737 uses a multi-layer PCB with surface mount and through-hole components. The mounting pattern is designed for direct installation in the Raymond 8300 control handle assembly.
Q: What happens if this control card fails?
A: Loss of electronic logic and drive/hydraulic control means the pallet truck cannot operate. The truck will not respond to control inputs until this assembly is replaced with a functioning unit.
Q: Which makes and models is this control card compatible with?
A: This control card is compatible with Raymond electric pallet trucks in the 8300, 8400, and 8500 series.
Q: How do I verify this control card is the correct replacement?
A: Cross-reference your equipment model number with the compatibility list: Raymond 8300, 8400, or 8500 series. Confirm the part number on your existing assembly matches RA 1036737 before ordering.
Q: What material is this control card made from?
A: The RA 1036737 is constructed with durable materials designed for long-term use in material handling environments.
Q: Where can I find replacement parts for this control card?
A: Replacement parts for the RA 1036737 can be found through authorized distributors or by cross-referencing the part number with compatible models.
