Product Description

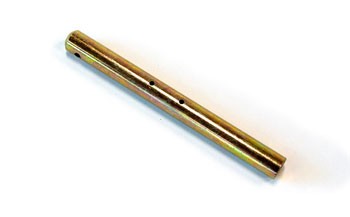

The RA 1028780 is a machined steel shaft designed for brake lever actuation on Raymond electric pallet trucks. This durable component mechanically links the brake lever handle to the brake mechanism, enabling reliable manual braking and load holding. Engineered for strength and fatigue resistance, it ensures consistent brake engagement under repeated use.
Direct replacement for Raymond 8300, 8400, and 8500 series electric pallet trucks. Built for durability and dependable brake system operation in warehouse, dock, and material handling environments.
Specifications
Product Overview
| Part Number | RA 1028780 |
Physical Specifications
| Material | Machined Alloy Steel |
Compatibility
| Compatible Models | Raymond 8300, Raymond 8400, Raymond 8500 |
| Application | Brake Lever Actuation Shaft |
Frequently Asked Questions
Q: What is the function of the RA 1028780 shaft?
A: The RA 1028780 is a machined steel shaft that mechanically links the brake lever handle to the brake caliper or brake mechanism. When the operator engages the manual brake lever, this shaft transmits the mechanical motion to actuate the parking brake, providing emergency stopping capability and load holding.
Q: Which Raymond models use the RA 1028780 shaft?
A: The RA 1028780 is compatible with Raymond 8300, 8400, and 8500 series electric pallet trucks. This shaft is part of the manual brake actuation system. Verify your model number and brake assembly configuration before ordering.
Q: What material is the RA 1028780 shaft made from?
A: The RA 1028780 is machined from alloy steel selected for strength, fatigue resistance, and corrosion resistance. The material is engineered to handle repeated actuation cycles and the mechanical loads imposed by brake engagement without permanent deformation.
Q: What are symptoms of shaft wear or failure?
A: Signs that the RA 1028780 needs replacement include excessive play or looseness in the brake lever, difficulty engaging the brake, grinding or clicking noises during brake actuation, or visible bending or cracking of the shaft. Any of these symptoms compromise brake safety and require immediate replacement.
Q: How critical is this shaft for equipment safety?
A: The RA 1028780 is critical for safety. A failed brake lever shaft eliminates manual braking capability, preventing the operator from holding the load or stopping the truck in an emergency. Do not operate equipment with a damaged or missing brake actuation shaft.
Q: What is the expected service life of the RA 1028780?
A: The RA 1028780 is designed for extended service life under normal brake usage. Lifespan depends on frequency of brake engagement and environmental exposure. High-cycle operations or harsh storage conditions may accelerate wear. Replace proactively if any signs of wear or corrosion develop.
