Product Description

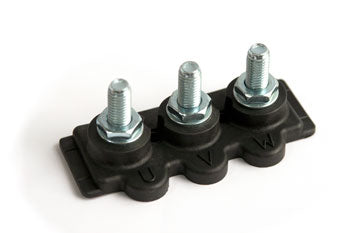

Raymond RA 1036966-73 Terminal Board for electric lift truck series 8300, 8400, and 8500; OEM part designed for control circuit electrical distribution; high-strength phenolic board with tin-plated copper terminals; rated for 24VDC and up to 40A continuous; mounting pattern compatible with Raymond drive unit interface.
Compatibility: Fits pallet jacks made by Raymond, model 8300, 8400, 8500. SKU: RA 1036966-73
Specifications
Part Numbers
| OEM Part Number | RA 1036966-73 |
| Manufacturer Part Number | RA 1036966-73 |
| Compatibility | Suited for Raymond electric pallet truck models: 8300, 8400, 8500 series |
Frequently Asked Questions
Q: What Raymond models use the RA 1036966-73 terminal board?
A: The RA 1036966-73 is an OEM terminal board for Raymond electric pallet truck series 8300, 8400, and 8500. This component is designed for control circuit electrical distribution on all three models.
Q: What is the voltage and current rating of this terminal board?
A: The RA 1036966-73 is rated for 24VDC and supports up to 40A continuous current. Verify your equipment voltage configuration matches before ordering.
Q: What materials is this terminal board made from?
A: The board is constructed from high-strength phenolic material with tin-plated copper terminals. Phenolic provides electrical insulation and structural rigidity, while tin plating ensures reliable electrical connections.
Q: How does the terminal board connect to the drive unit?
A: The mounting pattern is compatible with the Raymond drive unit interface. The tin-plated terminals accept wire connections and distribute electrical signals throughout the control circuit.
Q: What happens if this terminal board fails or shows corrosion?
A: A failed or corroded terminal board causes electrical distribution failure, resulting in loss of control signals to the motor, hydraulic system, or both. The truck becomes inoperable until replaced.
Q: Is the RA 1036966-73 a direct OEM replacement?
A: Yes. This is an OEM part with the mounting pattern and electrical specifications engineered for direct fit into Raymond 8300, 8400, and 8500 series control systems without modification.
